Manufacturer
SJ Microtech
Product Type
Machine
Brand
-
SKU
37547
Product Name

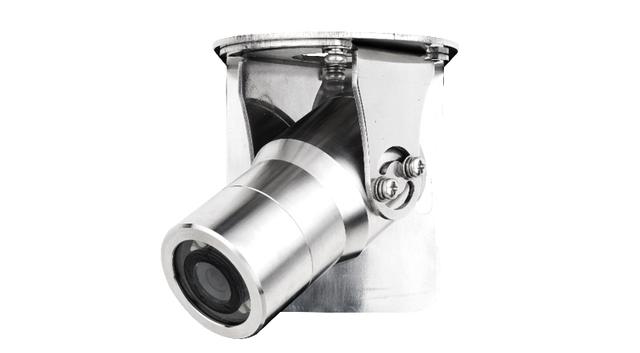

Intrusion Camera
Model Name
SJV10B66NAW
Size
-
Weight
-
Product Details
1/3" 520K Sony Super HAD Ⅱ Color CCD
24 pcs of White LEDs (working by PIR sensor)
3.6mm fixed lens
Smart-NR (3D-NR+Motion detection)
Sense up (up to x 256)
PIR sensor (detecting 5m/17ft)
D-WDR (Digital Wide Dynamic Range)
F-DNR (Fog Digital Noise Reduction)
Motion detection (Detection Area :4 Area)
Keep color image even at night time
External interface: Trigger Out / Alarm In
Vandalproof dome
Weatherproof (IP-65)
| MODEL | SJV10B66NAW | ||
| Image Sensor | 1/3” 520K Sony Super HAD Ⅱ Color CCD | ||
| TV System | NTSC | PAL | |
| No. of pixels | H | 976 | 976 |
| V | 582 | 494 | |
| Scanning Frequency | H | 15.734kHz | 15.625kHz |
| V | 59.94Hz | 50Hz | |
| Electronic Shutter | 1/60~1/100,000 | 1/50~1/100,000 | |
| Resolution | 700 TV lines | ||
| Power Source | 12VDC ±10% | ||
| Scanning System | 2:1 Interlace | ||
| Sync System | Internal | ||
| Video Output | VBS 1.0V p-p 75Ω | ||
| S/N Ratio | More than 52dB | ||
| Minimum illumination | 0.000 Lux (LED condition) | ||
| White LED | 24 pcs of white LEDs | ||
| Power Consumption | Max 0.7W at normal / Max 2W at LED on | ||
| Operating Temperature | -10℃ to 50℃ | ||
| Operating Humidity | 30% to 90% | ||
| Lens | 3.6mm fixed lens | ||
| Dimension /mm | 94 X 80 (L) | ||
| Weight /g | 400 | ||
