product Image
Vertically Motorized
Model Name
SC-3000
Series
OTC (Overhead Tube Crane)
Manufacturer information
provider logo
Shinyoung For M

Medical equipment manufacturer

Problem with product info?
Update request
Manufacturer
Shinyoung For M
Product Type
Machine
Brand
-
SKU
35007
Product Name
Vertically Motorized
Model Name
SC-3000
Size
-
Weight
-
Product Details

­

Product Description

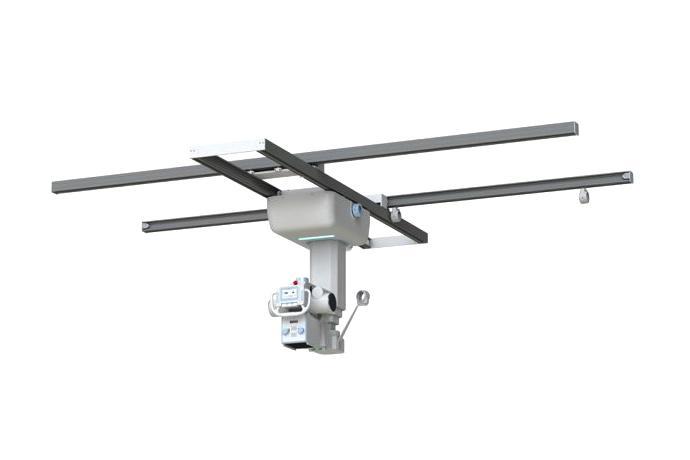

SC-300x is a radiographic X-ray tube suspension system designed to facilitate a wide range of procedures. Fully counter-balanced, the heavy-duty system moves easily throughout its entire range and minimizes operator fatigue.
The Overhead Tube Crane is ideal for all radiographic, off-table and upright requirements.
It ‘s basically non-motorized overhead tube crane, but for the vertical movement, the tube head can be moved either manually or automatically.

Specifications data
Trave

Longitudinal : 3320 mm (130.7 in.)

Transverse : 2136 mm (84.1 in.)

Vertical : 1500 mm (59.1 in.)

Bridge 3000 x 4000 mm (9.8 ft x 13.1 ft)
Tube Rotation Range

Horizontal : -150° ~ +180°

Catch position at: -90°, 0°, +90°

Power Requirement

120VAC, 50/60Hz, 500VA(UL)

200~240VAC, 50/60Hz, 500VA(CE)

Operation Touch panel Console is available

-Specifications subject to change without notice.
