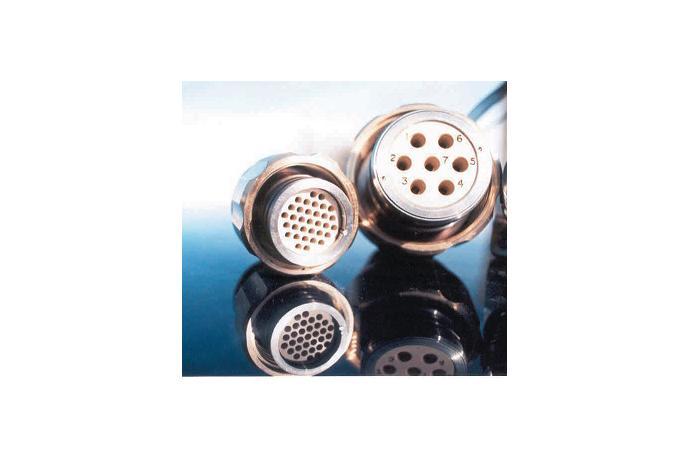

Surface Mateable High Density Metal Keyed Electrical Connectors

HDM (Hydrobond Deck Mate)



Features

 - Robust, Compact, High Integrity Design
 - Proven shock and vibration tested design
 - High Pin Densities
 - Positive Metal Key Way prevents misalignment and rotation
 - Scoop proof design
 - Barrel O – Ring seals for ease of maintenance and reliability
 - Locking grub screws on coupling ring
 - Depth rated to 3,450 MSW standard version. (6,900 MSW on request)
 - Fully open face pressure sealed
 - Available in 6 shell sizes
 - Bulkhead Mount and Panel Mount Designs available as standard
 - Mounting O – Ring face seals and optional Barrel seals available as standard
 - Pin Densities from 3 to 73 ways
 - Hard Gold Plated Contacts and Multi Leaved Sprung Sockets for positive connection
 - Acetal dust caps included on all connectors (additional lanyards on request)
 - Optional cost effective pressure sealing caps are available in a wide variety of materials
 - Voltage ratings up to 3,300 Volts RMS
 - Current ratings up to 95 Amps with higher ratings on request
 - Standard and Reverse gender configurations available
 - Available in 316 Stainless Steel as standard, Titanium, Aluminium Silicon Bronze, Nickel Aluminium Bronze etc on request
 - Non Magnetic versions available
 - 1 metre conductor tails on all bulkhead connectors as standard
 - Optional Earth Bonding
 - Termination options include fully water blocked, mechanical strain terminations and oil filled options
 - Moulding options include Polyurethane and Polyethylene


Application field

 - Long life connector with easily maintained O – Ring seals.
 - Designed for continual mate and de mate usage
 - Easy to use pressure sealing caps
 - Individual conductor Boot Seals allow mating in adverse conditions.
 - Provides the best protection for your expensive electronics.
 - Pins are protected during mating cycle
 - Extremely cost effective
 - Space saving high pin density designs require less space
 - Wide variety of pin configurations allows cost effective system design
 - Standard and reverse gender configurations allow for safe system design
 - Wide variety of metal options allows for best corrosion resistant design
