Product Name Self-Amplified Systems
Model
Series OEM Product
Catalog
Product Description



SHINSUNG Self-Amplified Systems



Feature of Product

SAH5, SAH15, SAH30

•5W, 15W, 30W models
•High-efficiency digital switching amplifier technology
•Low DC current draw and heat dissipation
•Unique flare shape provides controlled sound dispersion
•Operates with continuous background music & at high ambient temperatures
•Rotatable horn for vertical or horizontal dispersion
•Cast aluminum swivel mount


Specification

•5-, 15-, and 30-watt models with built-in amplifiers
•All models operate from 24V DC power source
•Digital switching amplifier technology provides low DC current draw and heat dissipation compared to conventional analog amplifiers
•Low heat dissipation allows units to operate with continuous background music and in higher ambient temperatures than conventional analog self-amplified horn speakers
•Excellent extended frequency response from 1.6″ diameter voice coil and 90mm, 12-ounce magnet structure (SAH5 and SAH15) or 100mm, 16-ounce magnet structure (SAH30)
•Predictable dispersion pattern over the full frequency range ensures excellent intelligibility and ease of layout
•3 ways to position speaker (rotate, tilt, and swivel)
•Weatherproof, UV-protected plastic housing
•Simple and secure cast aluminum swivel mount
•Screw terminal strip for easy wire connections
•Indexed volume control knob
•Easily removable access cover
•Slot in the base allows strapping to be used as a means of mounting the horn to electrical boxes (mounting strap included)
•Mountable to an I-beam flange using Bogen BC1 beam clamp (not included)
•Two-Year Warranty





SHINSUNG Self-Amplified Systems  1





Feature of Product

AH5A, AH15A

•5W and 15W models
•Weatherproof housing: all-aluminum construction
•Screwdriver-adjustable volume controls
•Tilt & swivel mounting brackets for vertical or horizontal positioning
•Textured mocha enamel finish
•Banding slots for easy mounting on beams and pillars
•4-conductor connection cable included


Specification

•5- and 15-watt models with built-in amplifiers
•Screwdriver-adjustable volume controls
•Universal tilt-and-swivel mount
•Banding slots easily secure horns to beams and pillars
•4-conductor, color-coded cable for quick connections to audio and power sources
•Plastic cover protects volume control and provides cable strain relief
•Weatherproof, all-aluminum housing
•Self-aligning, field-replaceable diaphragm
•Speaker and brackets have textured mocha enamel finish
•Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
•Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
•Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)





SHINSUNG Self-Amplified Systems  2



Feature of Product

BUFEX

•Volume control for network of speakers
•Buffer drives up to 150 speakers
•Bypass feature allows emergency announcements to be heard even if local speaker volume is set low or off
•600-ohm input impedance
•10 position settings plus off


Specification

•Continuously variable attenuator
•Drive up to 150 self-amplified speaker inputs
•100V, 70V, 25V, and page port level selectable input
•Bypass trim control for emergency paging (12 dB of preset control over level of bypass announcements)
•Mounts in a single gang electrical box
•Rugged and attractive stainless steel plate with engraved lettering
•Easy and secure terminal strip connections
•Two-Year Warranty





SHINSUNG Self-Amplified Systems  3

Feature of Product

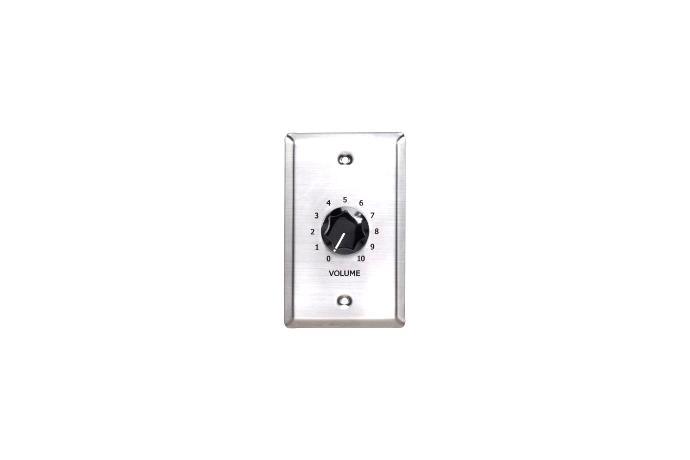

SLC

•Volume control for network of up to 150 speakers
•Easy install, wire with audio feed to speakers
•10 position settings plus off
•Secure terminal strip connections


Specification

•Remotely control the volume of up to 150 self-amplified speakers
•Rugged and attractive stainless steel plate with engraved lettering
•Mounts in a single gang electrical box
•Easy and secure terminal strip connections
•Passive (requires no DC power)
