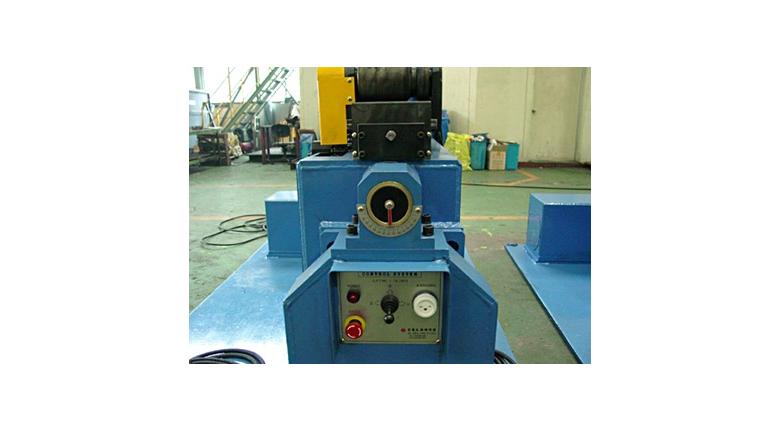

Product Name Rotator (Chain Type)
Model SK-ROT 1000A
Series Welding Aid Facilities
Catalog
Product Description

Specifications

MODEL SK-ROT 1000 NOTE
LOAD PIPE 150A~1000A -
C/P 3000kg -
ROLL SIZE ø 150 x 210L -
TURNING SPEED 0~1000 mm/min Inverter Regulation
TILTING ANGLE ±45˚ -
CONTROL SYSTEM MAIN P/L & Emergency S/W -
FOOT S/W TURNING ON/OFF
Safety TILTING Safety Pin -
TILTING Protection of Decelerator In Frame Decelerator Shaft Fixation
(BUSH TYPE)
-
TURNING ROLL B.R.G B.R.G Cover Assembly
(Body Protection from Foreign)
-
