Product Name Room Valve
Model STV 2FCU-CL/RN
Series 2 Way Valve
Catalog Spec 3 way valve STV 2FCU-CL/RN.pdf
Product Description

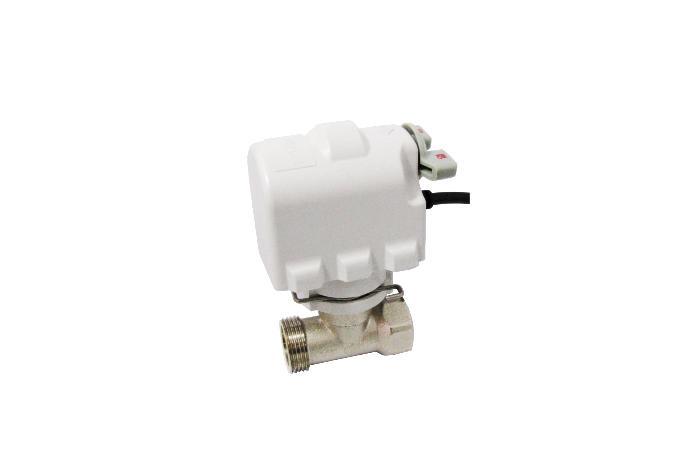

Model Room valve (STV 2FCU-CL/RN)
Use heating control in room or building,
Features

1. It's able to seperate or assemble an actuator and valve set easily.

2. it's possible to check whether it's close or open.

3. It's possible to control manually when it happens problem.

4. excellent durability


- Medium fluid : water(0~85 degree)
- Motorized valve
- Both function(auto & manual)
- Rating : 3W,  220~240VAC
- Suitable differential pressure : 2.0 kgf/㎠(Max)
- Suitable pressure : 0.2~10 (kgf/㎠)
- Response time(on/off) : with in 10 sec
- Connecting : 15A, 20A
- Reverse pressure : 1.0kgf/㎠(Max)
