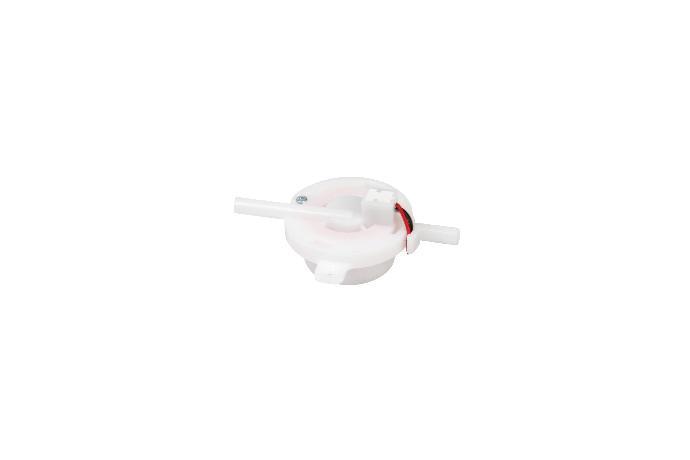

Type : Magnet sensor

Installation : Horizontal flow ( Standard type)

Ambient temperature : 0 ~ 60℃

Permissible fluid temperature : 0 ~ 60℃(It shall not be frozen)

Material : Body : POM

Rotor : POM

Magnet : Ba – Ferrite

Stop ring : SUS 304

Efficiency Fluid : Water

Measuring range : 0.05~0.5 (ℓ/ min)- It can be changed according user's request. It is possible to sense at 300(cc/min) in horizontal-type.

Working pressure : 10 kg/cm2 (Withstand pressure : 17.5kgf/cm2 - 1min)

Electrical rating : DC 4.5V ~ 24V, 10 mA,

Max. Duty cycle : 30 ~ 70%

Insulation resistance : Not less than 100 ㏁ (Between the connector and body)

Dielectric strength : When AC 600V(50/60 Hz) is added between the connector and body, detecting current is under 3 mA.

Pipe Connection : ONE TOUCH NIPPLE(6.5mm or 1/4 inch)
