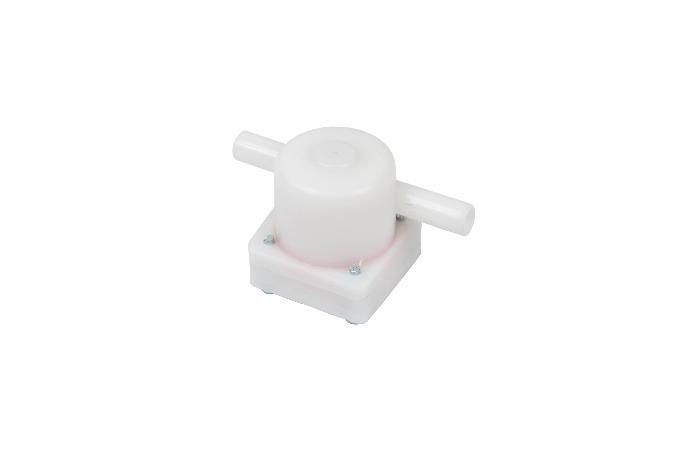

1.This sensor is used in water flow sensing.
2.This sensor has application to gas boiler and instantaneous warm-water appliance and water filtering appliance.
Features
1.This sensor has excellent character in low pressure.
2.The out pulse frequency has linear character in flux change.
This sensor has a half-permanent life by high sensitivity semiconductor sensor.
Type : Hall sensor
Installation : Both direction
Ambient temperature : 0 ~ 60℃
Permissible fluid temperature : 0 ~ 60℃(It shall not be frozen)
Body : POM
Rotor : POM
Magnet :Ba – Ferrite
Stop ring: SUS304
Fluid : Water
Measuring range : 0.4 ~ 5.0ℓ/ min
Working pressure (Max) : 10 kg/cm2
Electrical rating : DC 4.5V ~ 24V, 10 mA, Max.
Duty cycle : 30 ~ 70
