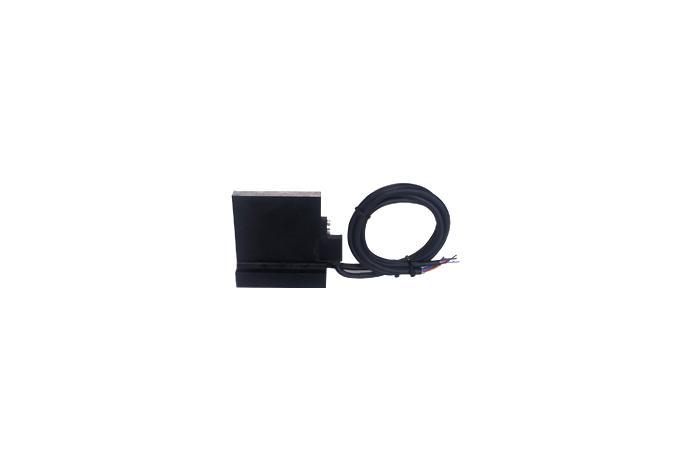

Product Name Coreless Special Type (Customized)
Model SWL-D Series
Series Linear Motor
Catalog
Product Description

Basic Specifications

Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier




Performance Specifications

Model Unit SWL-DM10T SWL-DL10T SWL-DL10S
Continuous Force [ N ] 42.8 102.2 93.1
Max. Force [ N ] 128.4 306.6 279.3
Continuous Current [ Arms ] 1.96 1.8 3.5
Max. Current [ Arms ] 5.9 5.3 10.5
Electrical Power [ W ] 370.2 340.0 661.0
Power Loss [ W ] 37.4 69.2 35.0
Resistance (Line toLine) [ Ω ] 6.50 14.77 1.90
Inductance (Line toLine) [ mH ] 5.42 72.66 4.50
Force Constant (Kf) [ N/Arms ] 21.84 56.78 26.60
Back EMF Constant (Ke) [ V/(m/sec)] 7.28 19.28 8.90
Motor Constant [ N/W^½ ] 6.7 16.6 10.9
Electrical Time Constant [ msec ] 0.83 4.92 2.37
POLE Pitch [ mm ] 30.0 42.0 42.0
Normal Force [ N ] 0.0 0.0 0.0
Weight [ kg ] 0.40 0.67 0.70
