SEWOO INDUSTRIAL SYSTEMS Co., Ltd. is a specialized motor company established in 1995, developing and producing industrial DC motors, BLDC motors, linear motors, and related drivers and linear stages. This company has successfully localized BLDC and linear motors, which were previously dependent on imports, establishing its position as a domestic brand and a component material technology expert.

세우산전(주)는 1995년 설립 이후 산업용 DC 모터를 시작으로 BLDC 모터, 리니어 모터 및 관련 드라이버, 리니어 스테이지를 개발, 생산하는 정밀 모터 전문 기업. 수입에 의존하던 BLDC 및 리니어 모터의 국산화에 성공하며 국내 토종 브랜드로서의 입지를 구축한 부품소재기술 전문 기업.

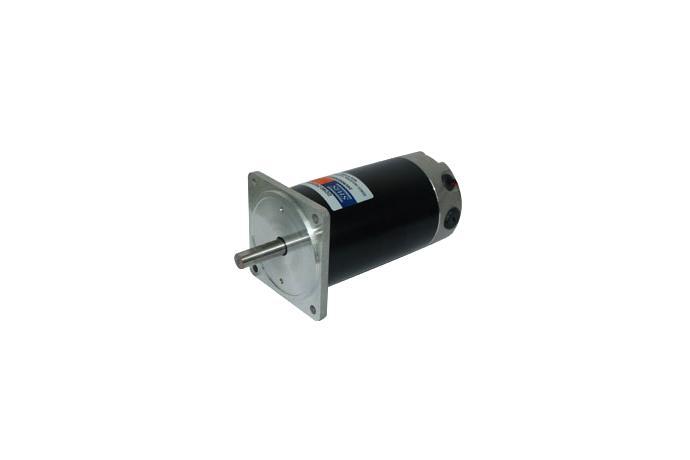

MODEL		DD90
MODEL		F012060	F012090	F012120	F012150	F024060	F024090	F024120	F024150	F090060
Rated Voltage	V	12				24				90
Rated Output	W	60	90	120	150	60	90	120	150	60
Rated Current	A	7.0	10.6	14.1	17.6	3.5	5.3	7.0	8.8	0.9
Rated Speed	r/min	3000
Rated Torque	kgf-cm	1.9	2.9	3.9	4.9	1.9	2.9	3.9	4.9	1.9
Weight	kg	2.1	2.2	2.9	3.4	2.1	2.2	2.9	3.1	2.1

MODEL		DD90
MODEL		F090090	F090120	F090150	F090200	F180060	F180090	F180120	F180150	F180200	F180250
Rated Voltage	V	90				180
Rated Output	W	90	120	150	200	60	90	120	150	200	250
Rated Current	A	1.4	1.9	2.3	3.1	0.5	0.7	0.9	1.2	1.6	2.0
Rated Speed	r/min	3000
Rated Torque	kgf-cm	2.9	3.9	4.9	6.5	1.9	2.9	3.9	4.9	6.5	8.1
Weight	kg	2.1	2.2	2.9	3.0	3.1	2.1	2.2	2.9	3.0	3.4

L	MODEL
141.5	F012060/ /F012090 / F024060 / F024090 / F090060 / F090090 / F180060 / F180090
159.5	F012120 / F024120 / F024150 / F090120 / F090150 / F180120 / F180150 / F180200
184.5	F012150 / F090200 / F180250
