카탈로그-세우산전

SEWOO INDUSTRIAL SYSTEMS Co., Ltd. is a specialized motor company established in 1995, developing and producing industrial DC motors, BLDC motors, linear motors, and related drivers and linear stages. This company has successfully localized BLDC and linear motors, which were previously dependent on imports, establishing its position as a domestic brand and a component material technology expert.

세우산전(주)는 1995년 설립 이후 산업용 DC 모터를 시작으로 BLDC 모터, 리니어 모터 및 관련 드라이버, 리니어 스테이지를 개발, 생산하는 정밀 모터 전문 기업. 수입에 의존하던 BLDC 및 리니어 모터의 국산화에 성공하며 국내 토종 브랜드로서의 입지를 구축한 부품소재기술 전문 기업.

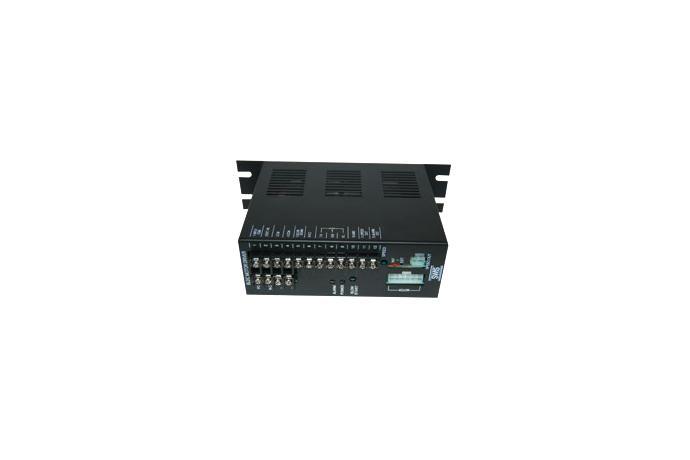

MODEL	SBDSMI-03D
Input Voltage	AC 100~200 V ±15%, 50/60Hz
Maximum Allowable Current	2A
Speed Control Range	300~3000 RPM
Environment	Ambient temperature 0℃ ~ 50℃(Is not freezing)
Input Voltage	Photocoupler
Output Signal	Open Collector
Protection	ㆍShut down at over current ㆍAbnormal signal check between motor and driver
Functions	ㆍSpeed adjustable ㆍRotation direction changeable ㆍRun & Stop selection ㆍDetect speed signal ㆍMotor Output & Rated Current Setting
