SEWOO INDUSTRIAL SYSTEMS Co., Ltd. is a specialized motor company established in 1995, developing and producing industrial DC motors, BLDC motors, linear motors, and related drivers and linear stages. This company has successfully localized BLDC and linear motors, which were previously dependent on imports, establishing its position as a domestic brand and a component material technology expert.

세우산전(주)는 1995년 설립 이후 산업용 DC 모터를 시작으로 BLDC 모터, 리니어 모터 및 관련 드라이버, 리니어 스테이지를 개발, 생산하는 정밀 모터 전문 기업. 수입에 의존하던 BLDC 및 리니어 모터의 국산화에 성공하며 국내 토종 브랜드로서의 입지를 구축한 부품소재기술 전문 기업.

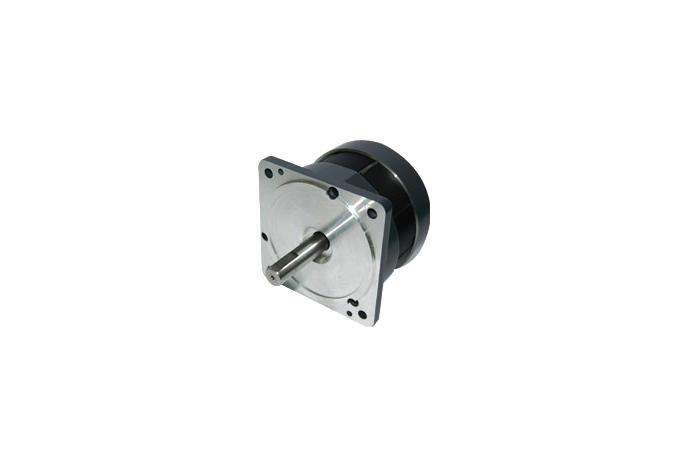

MODEL		BD90
MODEL		N012040	N012060	N012070	N024050	N024100	N024150	N220100	N220150	N220200
Rated Voltage	V	12			24			220
Rated Output	W	40	60	70	50	100	150	100	150	200
Rated Current	A	5.4	8.1	9.7	3.4	6.7	10.1	0.8	1.1	1.5
Rated Speed	r/min	3000
Rated Torque	kgf-cm	1.3	1.9	2.2	1.6	3.2	4.8	3.2	4.8	6.3
Weight	kg	2.1	2.3	2.5	2.1	2.3	2.5	2.1	2.3	2.5
Applicable Driver		SBDM-10A			SBDM-05A	SBDM-10A	SBDM-25A	SBDSMA-02A / SBDSMI-03A / SBDSMS-03A	*SBDSMI-03A / SBDSMS-03A

L	MODEL
57.5	N012040 / N024050 / N220100
67.5	N012060 / N024100 / N220150
77.5	N012070 / N024150 / N220200
