This product is manufactured by
SEWOO INDUSTRIAL SYSTEMS
Manufacturer information
SEWOO INDUSTRIAL SYSTEMS
BLCD motor, DC motor, Linear motor, Linear stage and Small motor manufacturer
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEWOO INDUSTRIAL SYSTEMS
Product Type
Machine
Brand
-
SKU
39492
Product Name

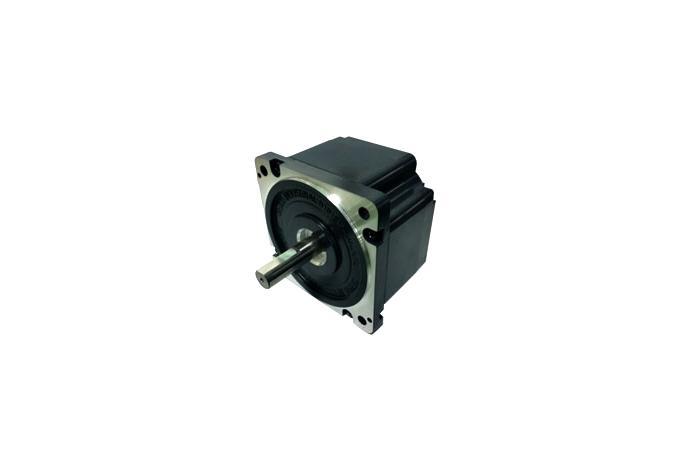

BLDC MOTOR
Model Name
BD9S
Size
-
Weight
-
Product Details
D-cut Type Specifications
| MODEL | BD9S | |||||
| N024100 | S024150 | N220150 | S220200 | S220250 | ||
| Power Input |
Rated Voltage(V) | 24 | 220 | |||
| Rated Current(A) | 6.1 | 10.0 | 2.0 | 2.3 | 2.8 | |
|
Rated Output(W) |
100 | 150 | 150 | 200 | 250 | |
|
Rated Speed(r/min) |
3000 | |||||
|
Rated Toque(kgf*cm) |
3.2 | 4.8 | 4.8 | 6.5 | 8.1 | |
|
Applicable Driver |
SBDM-10A | SBDM-25A | SBDSMI-03A SBDSMS-03A |
SBDSMD-05A | ||
| L(mm) | MODEL |
|
62 |
N024100 / S024150 / N220150 / S220200 |
|
74 |
S220250 |
Gear Head Specifications
| MODEL | Applicable Model |
Power Input | Rated Speed(rpm) |
Rated Output(W) |
Rated Toque(kgf*cm) |
|
| Rated Voltage(V) |
Rated Current(A) |
|||||
| SS9KC | N024100 | 24 | 6.1 | 15~1000 | 100 |
7.7 ~ 200 |
| S024150 | 24 | 10 | 150 | 11.6 ~ 200 | ||
| N220150 | 220 | 2.0 | 150 | 11.6 ~ 200 | ||
|
SS9KH |
S024150 | 24 | 10 | 15 | 11.6 ~ 300 | |
| N220150 | 220 | 2 | 150 | 11.6 ~ 300 | ||
| S220200 | 220 | 2.3 | 200 | 15.4 ~ 300 | ||
| S220250 | 220 | 2.8 | 250 | 19.4 ~ 300 | ||
