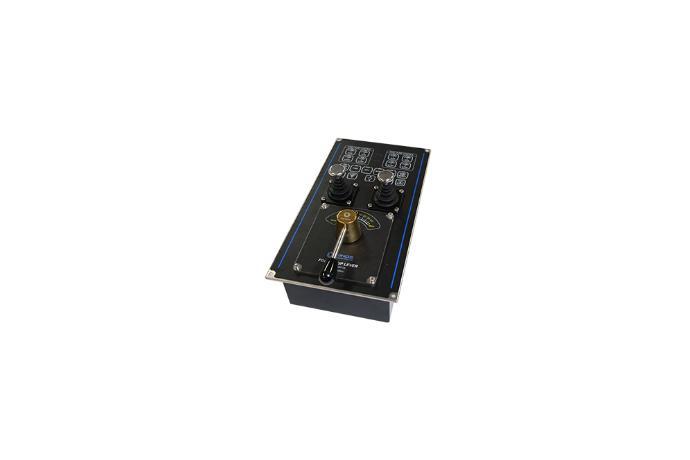

KS81F & KS81A is equipped lever and joystick which is command direction of vessel. Also It has function which is controlled pump and direction.
It can be adjusting lamp brightness through ‘Dimmer’ button, and it can be switched to external auto navigating device by pressing 'Autopilot' button

  ● Power: DC24V

  ● Communication: CAN BUS

  ● Temperature: -20℃ ~ 60℃

  ● Available with KS73A

  ● Adjustable PUMP Run / Stop

  ● Autopilot mode

  ● Dim button: Adjustable lamp brightness (Port / STBD)

  ● Adjustable Pump Run/Stop output delay time.

  ● Automatic Pump Run feedback mode.

  ● Universal lever(KS71A) / Compact size Joystick(KS65E)

  ● Sync / IND / NFU control mode

  ● Autopilot automatically cancel when lever is operated in Autopilot mode

Drawing
