D1A Double Seal Type  details

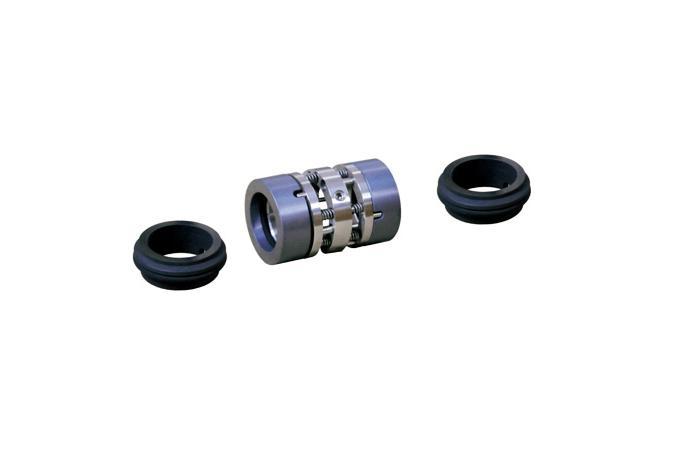

D1A Double Seal Type

Mechanical Seal

Urgent? then use Komachine Service
Description

FEATURES

Operating Limits

Pressure : Full Vacuum up to 10kg/cm2

Velocuty : Up to 15m/sec

Viscosity : 300cp

Temperature : -30deg.C ~ 250deg.C

Slurry : Up to 0.5%



1. Seal Face Materials

A : Carbon / B : Stellite Coat / C : Ceramic Coat / D : T/C Coat

E : T/C Plate  / F : SIC Plate / G : Ceramic (AL2O3) / H : Solid SIC

I : Solid T/C / S : Special



2. Packing Materials

C : Teflon Carbon / E : E.P.R G : GrafoilKKalrez

N : N.B.R PPerfluoro QF.E.P (Glass Filled Teflon)

T : Teflon  / V : Viton



3. Body & Spring Materials

2 : Carpenter 20 3Titanium 4 : STS304

5STS316L  / 6 : STS316 7Hastelloy B

8Hastelloy C   9Monel Alloy
