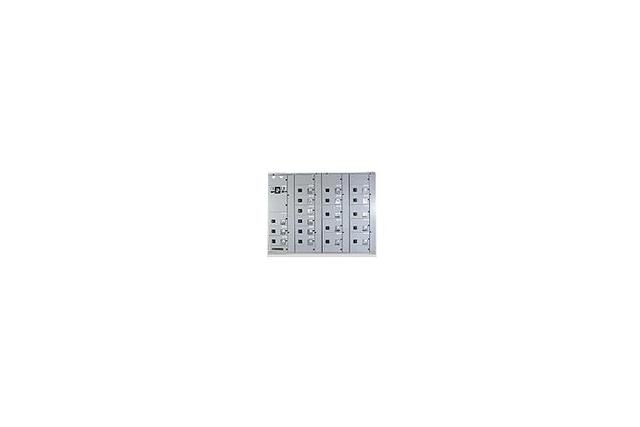

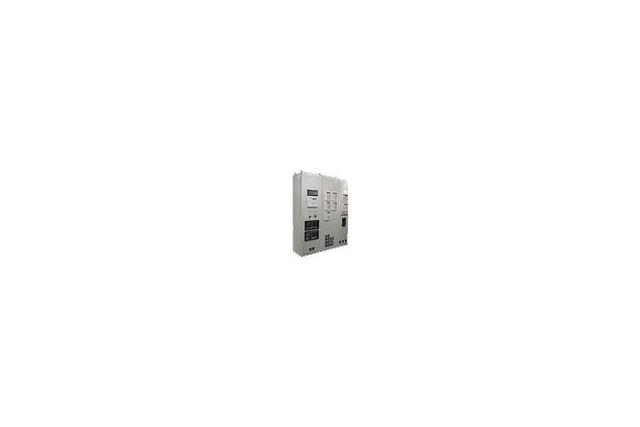

Low Voltage Switchgear (LVSG)
Model Name
SLV Type
Series
Switchgear
Data
-
Manufacturer information
provider logo
Seondo Electric

Distributing panel facility manufacturer, Solar heating system, Smoke reducing device and Electric work

Problem with product info?
Update request
Manufacturer
Seondo Electric
Product Type
Machine
Brand
-
SKU
40156
Product Name
Low Voltage Switchgear (LVSG)
Model Name
SLV Type
Size
-
Weight
-
Product Details

Apply  Low voltage power center is a swithgear which is used for electrical power plant and power supply system up to 600v. It can be used in wide variety of industrial fields since it applies standards of low voltage metal-enclosed swithgear-JEM and IEC,NEMA,ANSI.



Circuit breaker compartments
 - The circuit breaker cannot be moved unless it is "open"
 - The breaker cannot be closed when it is between the connected and the disconnected position. When inserting or withdrawing the breaker. the interlock lever should be lifted,Only when the breaker is "open", then lock plate can be lifted, allowing the breaker to be inserted or withdrawn.

 Main bus and cable
 - The rear part is bus bar compartment. It is composed of horizontal feeder bus bar of ACB and cable connection prts. Cable connecting type or bus duct type available for external connection, and either type is allowed. Check or maintenance of bus compartments can be easily carried out with opening rear cover o door

 Satety oritented constructions
 - interior protective cover and ACB front cover will enhance safety even when the front door is open.

 Consideration for work
 - The structure which arranges power circuit at rear adn control circuit at front makes installation and maintenance easy.

 Compact size
 - Compact size ensures and flexible effective use of electrical room,equipment layout
