배전반 및 전기 자동제어반 제조업

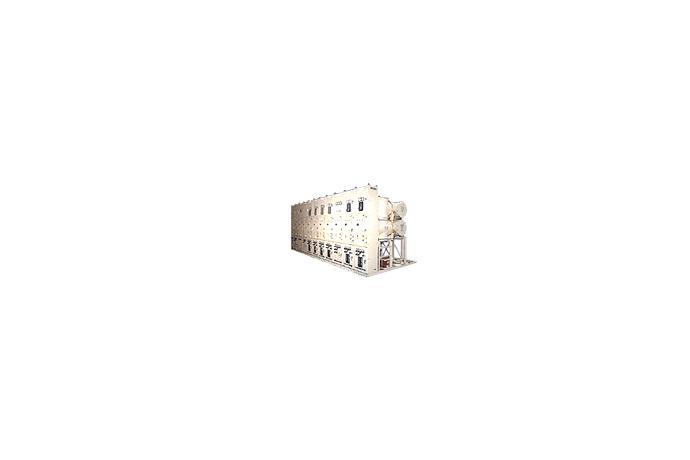

Established in 1972, Seondo Electric Co., Ltd. is a specialized manufacturer of heavy electrical equipment, focusing on switchgear facilities and automation systems. The company supplies various switchgears, protective relay panels, gas-insulated circuit breakers (GIS), vacuum circuit breakers, and load break switches to Korea Electric Power Corporation (KEPCO), nuclear and thermal power plants, and various industrial plants. Seondo Electric is dedicated to the research and development of intelligent heavy electrical equipment, automation systems, and eco-friendly products by integrating power technology with advanced information technology. The company also produces solar heating systems and exhaust gas reduction devices, and undertakes electrical construction projects.

1972년 창립된 선도전기(주)는 중전기기 생산 전문 기업으로, 수배전반 설비 및 자동화 시스템을 주요 사업 영역으로 하는 기업. 한국전력공사, 원자력발전소, 수·화력발전소 및 각종 플랜트에 배전반, 보호계전기반, 가스절연차단기, 진공차단기, 부하개폐기 등을 공급하며 전력기술의 미래 방향과 첨단정보기술을 접목한 지능형 중전기기 및 자동화시스템, 환경 친화 제품 연구개발에 주력 중인 기업. 솔라 히팅시스템과 매연 저감장치 생산 및 전기 공사도 수행하는 기업.

Rated Voltage	25.8kV (rms)
Rated Current	600, 2000A (rms)
Rated Frequency	60Hz
Rated Short-time Electric Current	25kA (rms, 1sec)
Rated Ac Withstand Voltage	50kV (rms, rms, between charging part and the ground) 60kV (rms, Between poles)
Rated lightning withstand Voltage	125kV (peak, between charging part and the ground) 145kV (peak, between single pole)
Control or operated circuit Voltage	DC 125V, AC 220V (Single phase)
