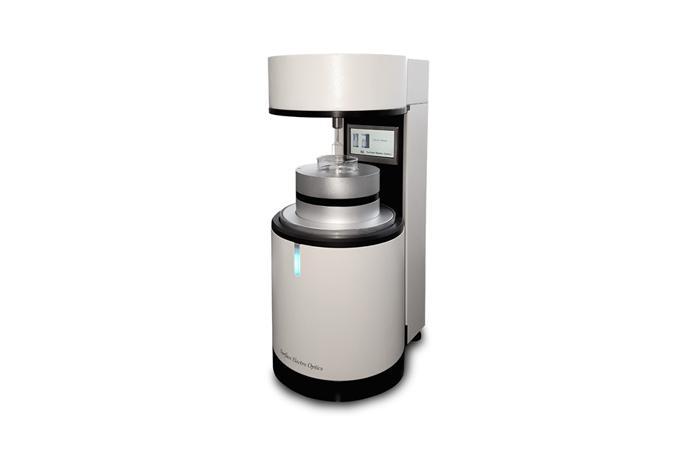

Introducing the DCA-200 Analyzer from Surface Electro Optics, specifically designed to record dynamic advancing and receding contact angle. Dynamic contact angle measurements can provide important insight into the nature of surfaces, surface reactivity, surface topography, homogeneity and porosity, and surface treatments required for bonding and adhesion. The DCA can measure the surface tension of a liquid. The information of the surface tension is critically important in applications such as detergency and emulsification and is also important for many biological processes.
The DCA-200 system is designed for Educational, Quality control, and other multiple user application. By simply operating the sample stage automatically, you can get the surface characteristic quickly.
This system is using automatic stage controller for precisely operating the sample stage so that the accuracy and reliability of results can be higher.
*Typical Application
Dynamic contact angle measurement using Wilhelmy method
surface tension measrement using Du-Nouy Ring method & Wilhelmy Plate method
Powder contact angle measurement using Washburn method
Density of liquid measurement
Adsorption measurement
Surface energy calculate
Zisman plot(Critical surface tension) calculate
*Technical Data
