Description

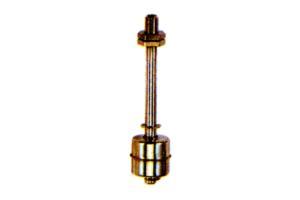

Multi-Station Level Switches
STR Series
| Model | STR-1S-1P | STR-2S-2P | STR-1P-1P | STR-3S-3P | STR-LB-1S |
|---|---|---|---|---|---|
| Out side view |
 |
 |
 |
 |
 |
| Contacting Rating |
50VA DC/AC | 50VA DC/AC | 50VA DC/AC | 50VA DC/AC | 50VA DC/AC |
|
Contact |
150m Ω | 150m Ω | 150m Ω | 150m Ω | 150m Ω |
| Dielectric Strength | 600 DC(Min.) | 600 DC(Min.) | 600 DC(Min.) | 600 DC(Min.) | 600 DC(Min.) |
| Maximum Voltage | 350V DC/300V AC | 350V DC/300V AC | 350V DC/300V AC | 350V DC/300V AC | 350V DC/300V AC |
| Maximum Current |
0.5A DC/AC | 0.5A DC/AC | 0.5A DC/AC | 0.5A DC/AC | 0.5A DC/AC |
| Insulation Resistance | 10M Ω (Min.) | 10M Ω (Min.) | 10M Ω (Min.) | 10M Ω (Min.) | 10M Ω (Min.) |
| Material | Stem SUS304/316 Stopper SUS304/316 Float SUS304/316
|
Stem SUS304/316 Stopper SUS304/316 Float SUS304/316 |
Stem SUS304/316 Stopper SUS304/316 Float PP |
Stem SUS304/316 Stopper SUS304/316 Float SUS304/316 |
Stem SUS304/316 Stopper SUS304/316 Float SUS304/316 |
| Dimension |  |
 |
 |
 |
 |
