Description
- 100% successful rate of arc start, 20 to 50% reduced spatter generation than conventional type
- Welding quality varies depending on current waveform design capability and current range, equipped with real time current waveform control technology, reduced manpower for removal of spatters and slag, and excellent welding quality
-
Power supply unit for robot and automatic welding
-
Use solid wire and CO2 gas for welding of most steels
-
Change wire and gas for welding of nonferrous metal such as aluminum and STS (use separate supply unit and torch for aluminum welding)
-
Constant bead generation and easy tack welding by controlling welding time
-
Not applicable for block work for shipbuilding, outdoor or vertical works
- Substitute for TIG and MAG welding. Robot and automatic welding
- The quality of manual welding are determined by in the order of condition settings, proficiency, and performance of machine
Shapes of Spatter depending on Diameter
Below shows sieved spatters. Left figure shows coarse spatters generated from conventional inverter and SCR, and thus easily stick to the products and difficult to remove.
Right photo shows fine spatters generated from our Magic Arc and they are non-sticky and easy to remove.
Waveform of welding current and voltage [Magic Arc, SEIL]
Current and voltage waveforms of Magic Arc are as follows.
Waveform of welding current and voltage by waveform control [Magic Arc, SEIL]
Left figure shows waveform of welding current and voltage for conventional welding machine and right photo shows waveform for Magic Arc.
Specification
| Classification | Unit | 350A | 500A | 600A |
| Rated Output Current | A | 350 | 500 | 600 |
| Rated Input Voltage | V | Choose one of three-phase 220, 380, and 440V | ||
| Rated Input | KVA | 15.5 | 27.5 | 38 |
| Output Current | A | 40-350 | 40-500 | 60-600 |
| Rated Load Voltage | V | 36 | 45 | 50 |
| Rated Duty Cycle | % | 60 | 60 | 80 |
| Output Voltage Range | V | 14-36 | 15-45 | 15-55 |
| Max. Open Circuit Voltage | V | 59 | 73 | 80 |
| Rated Frequency | Hz | 60 | ||
| Dimensions W*L*H | mm | 360*488*632 | 370*640*615 | 425*630*750 |
| Weight | Kg | 45 | 65 | 95 |

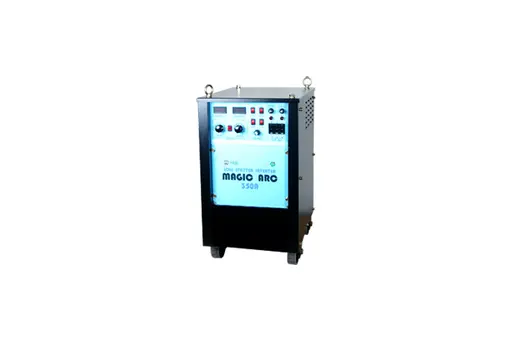

Commodity & Description : GMAW 350A (MAGIC ARC 350A)
- Price : USD 2,800 FOB BUSAN PORT
- Minimum Order Quantity : 10 set
- Terms of Payment : T/T in advance or Irrevocable L/C at sight
- Lead Time : 4-6 weeks after receiving your payment Trade Information
