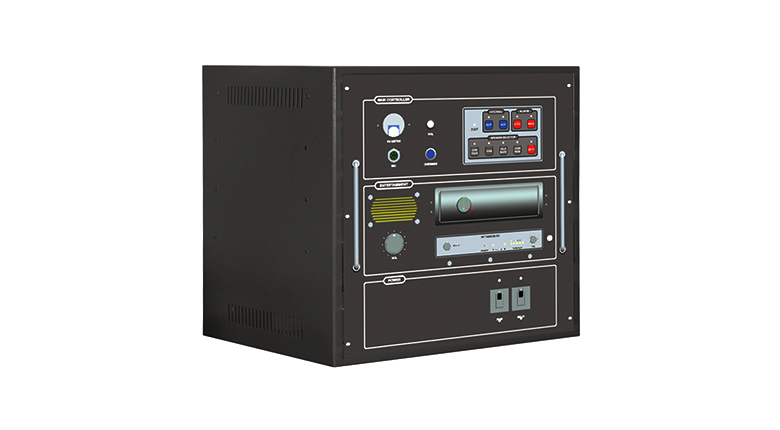

Public Address System
Model Name
SNP-100
Series
General Equipment
Data
SNP-100/200/400/800
Manufacturer information
provider logo
SAMYUNG ENC

Marine communication equipment manufacturer, Shipbuilding electronic navigation communication, AIS, GMDSS, GPS floater and more

Problem with product info?
Update request
Manufacturer
SAMYUNG ENC
Product Type
Machine
Brand
-
SKU
55279
Product Name
Public Address System
Model Name
SNP-100, SNP-200, SNP-400, SNP-800
Size
-
Weight
-
Product Details

Features

• As key components are of transistors and ICs, the power consumption is remarkably reduced and the system is by far small in size and weight.
• Unless the load becomes excessive, no speaker matching is required by adopting the regulated voltage system for output circuit.
• The system incorporates the AC/DC automatic switching circuit. Therefore the system can continue the operation even when AC power failure occurs.
• The system is designed to cope with varied specification of controlling circuit etc.



Specifications

▶ Source of Power : AC 220V, 1•, 50/60 Hz & DC 24V

▶ Audio frequency Amplifier Output : 100W~800W
• Frequency characteristics : 300~8000Hz within ±6dB
• Distortion : less than 5% (with rated output)
• S/N ratio : more than 50dB

▶ Built in Equipment
• Receiving system : Super-heterodyne system
• Receiving frequency : AM 530 ~ 1605 KHz : FM 88 ~ 108 MHz
• Receiving sensitivity : AM less than 15㎶, FM less than 10㎶
• mage ratio : more than 15㎶
• Selectivity : less than 5 KHz for -6dB : less than 16 KHz for -40dB
• Intermediate frequency : 455 KHz
