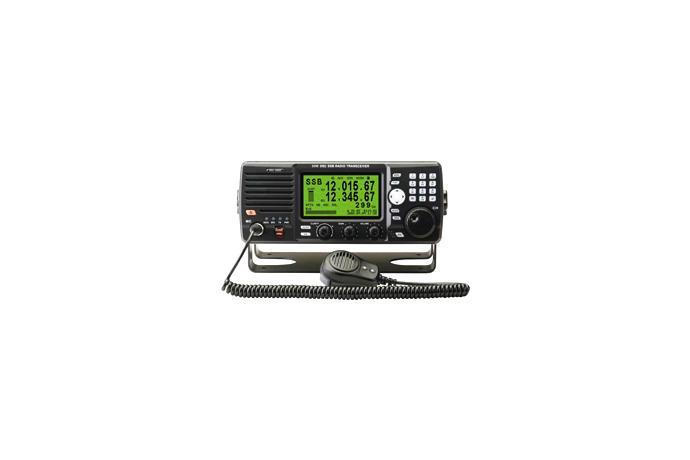

product Image
50W 디지탈 SSB 무선 송수신기
Model Name
SRG-5000D
Series
General Equipment
Data
-
Manufacturer information
provider logo
SAMYUNG ENC

Marine communication equipment manufacturer, Shipbuilding electronic navigation communication, AIS, GMDSS, GPS floater and more

Problem with product info?
Update request
Manufacturer
SAMYUNG ENC
Product Type
Machine
Brand
-
SKU
55266
Product Name
50W 디지탈 SSB 무선 송수신기
Model Name
SRG-5000D
Size
-
Weight
-
Product Details

특징

• 신개념의 신세사이즈 기술을 적용한 완벽한 음질개선, 무잡음 실현
• 컴팩트한 Size로 키패드 및 다이얼의 간소화로 조작 및 편의성 극대화
• 각기능 및 주파수는 와이드한 액정 표시부 채택으로 판독이 용이

• 송신출력의 가변, 주파수 및 채널을 그룹별•개별로 신속하게 스캔가능
• 원격제어 및 데이터 모뎀(HF e-mail용)연결가능
• 내부 스피커 장착(외부스피커 옵션)



제품사양

▶ 종합
• 주파수 범위 : 송신 : 1.6MHz ~ 27.5MHz(10Hz STEP) , 수신 : 500kHz ~ 29.9999MHz(10Hz STEP)
• 주파수 편차 : ±10Hz 이내
• 통신방식 : 단신 및 반복신
• 사용채널 : 300채널
• ANT 인피던스 : 50Ω
• 사용온도 : -15℃ ~ +55℃, 95%
• 전원 : DC 24V ± 15%(수신시 2.5A, 송신시 15A)

▶ 송신부
• 전파형식 및 출력 : J3E(50W), H3E(17W) → SRG-5000D
• 반송파 감쇄비 : 40dB 이상
• 주파수 편차 : ±10Hz 이내
• 점유주파수 대역폭 : 3kHz 이내
• 변조방식 : 저전력 평형변조
• 수신주파수 특성 : 6dB 이내 350~2700Hz
• 마이크 입력임피던스 : 600Ω

▶ 수신부
• 수신방식 : 더블 슈퍼헤테로다인 방식
• 중간주파수 : 49.455MHz, 455kHz
• 감도 : J3E 1㎶, H3E 3㎶ at 20dB S/N for 250mW
• 스프리어스 감쇄비 : 40dB이상
• 종합 왜 잡음 : 20dB이상
• 출력임피던스 : 8Ω

▶ 디지탈 선택호출(DSC) 전용수신부
• 주파수 : 2187.5, 4207.5, 6312, 8414.5, 12577, 16804.5kHz
• 수신전파형식 : F1B 1㎶
• 주파수 편이 : 1700±85Hz (MARK : 1615Hz, SPACE : 1785Hz)
• 통신속도 : 100 bps
• 주파수 편차 : ±0.5Hz
• 선택도 : 6dB 대역폭 270~300Hz
               30dB 대역폭 ±380Hz 이내
               60dB 대역폭 ±500Hz 이내

▶ 경보자동전화장치
• 신호주파수 : 1300Hz, 2200Hz
• 주파수 편차 : ±1.5%이내
• 신호폭 : 250ms±50ms

• 신호증폭비 : 1:1.2이내
• 신호간격 : 50ms이내
• 송신시간 : 45초±2초
