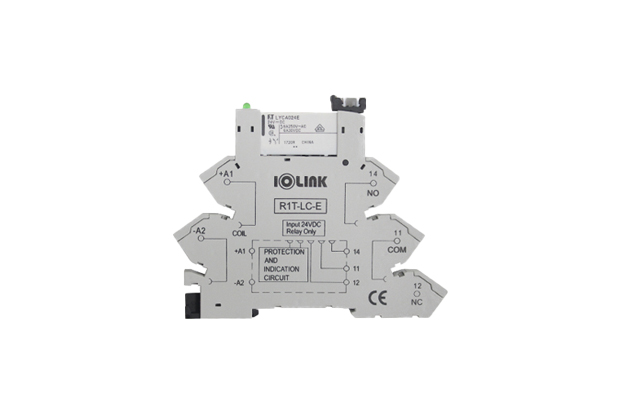

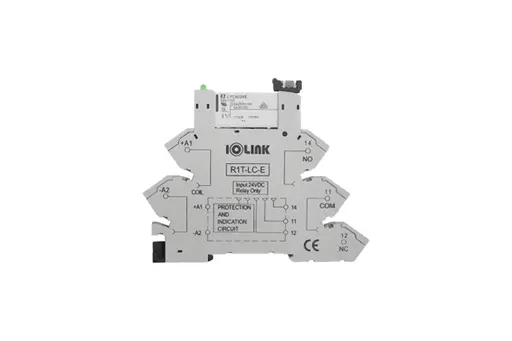

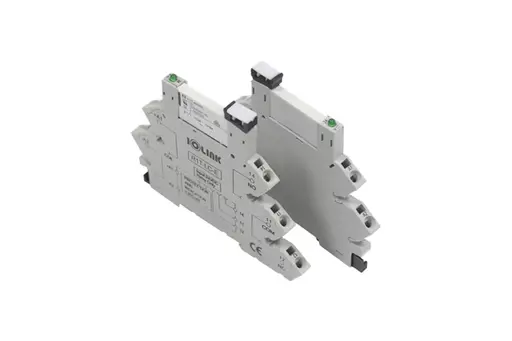

R1T-E Series
1 Form C, spring-cage type terminal block
Features
- 1 Form C relay mounting type relay board for heavy load with a width of 6.2 mm
- Functional product with high wiring reliability even in environments with severe vibration such as machine tools and ships because the inside of the terminal block is designed with a leaf spring structure
- Easy to work with a structure that can be mounted on DIN rail
- Easy to check operation status by attaching contact LED
Main Features
|
1C (1 Form C) relay applied By installing a 1C relay on the 1-point type relay board, it is possible to select A contact or B contact for use |
Improved wiring work Spring-cage type terminal blocks work faster than conventional Y, O type terminal blocks, reducing wiring works |
|
Removal function integrated socket Relay replacement is easy as the relay can be removed without a separate tool |
Compact size The size is 6.2mm X 95.0mm (width X length) and it is slimmer than existing products, so it is suitable for places with a narrow installation area |
