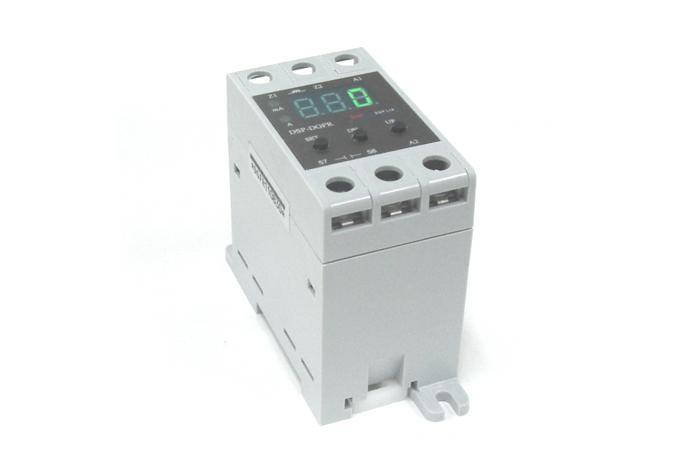

product Image
DC Digilog Current Relay
Model Name
DSP-DCR
Series
The Others
View All
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Product Type
Machine
Brand
-
SKU
58094
Product Name
DC Digilog Current Relay
Model Name
DSP-DCR
Size
-
Weight
-
Product Details

 ◆Compact size, Digital based
 ◆DC current range
 : DC 1A~300A with External Shunt
 : External Shunt Rating → 50mV output
 ◆Self-diagnostic function
 ◆Operational time preset for over current and under current,respectively
 ◆Operational information based on characters and/or numbers
 : DCR(Panel Mounting Type)→3 Digit Window
 : DCR-M(Panel Flush Mounting Type : Converter + Meter) → 5 Digit Window



SamWha DSP DC Digilog Current Relay DSP-DCR
