Manufacturer
SAMWHA DSP
Product Type
Machine
Brand
-
SKU
58081

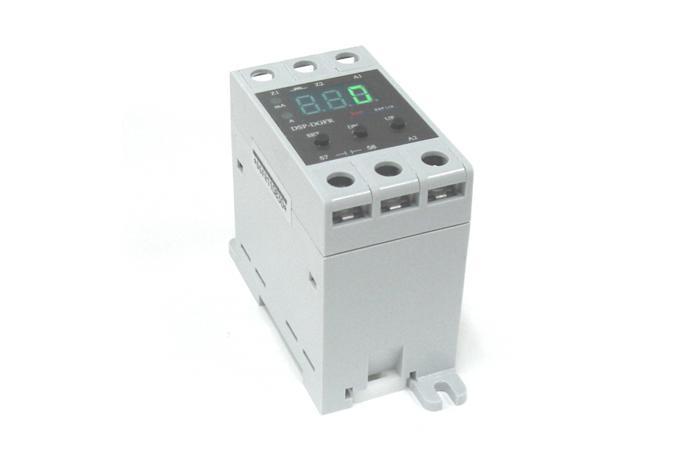

Product Name
DC 디지털 과부족전류 계전기
Model Name
DCR
Size
-
Weight
-
Product Details
◆초소형,판넬 내,외장형
◆직류전류 검출 범위
◆DSP-DCR,DCR-M
: DC 1A~300A with External Shunt
: External Shunt(외부 접속 분류기)의 정격 출력 → 50mV
◆자체 고장진단 기능
◆과,부족 전류 보호를 위한 개별 동작 시간 설정
◆문자와 숫자에의한 상세한 운영 정보
: DCR Type(Panel Mounting Type)→3 Digit Window
: DCR-M Type(Panel Flush Mounting Type : Converter + Meter) → 5 Digit Window
