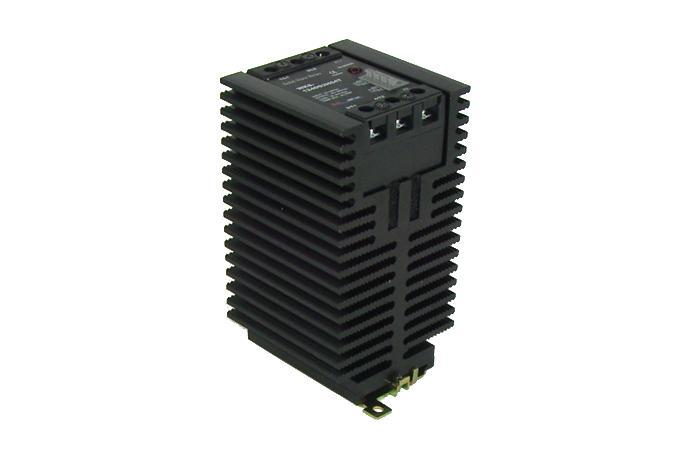

product Image
단상2회로 차단 G2H-Type
Model Name
WKS-1240(1340)G2H04T
Series
Wonder S.S.R
View All
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Product Type
Machine
Brand
-
SKU
58039
Product Name
단상2회로 차단 G2H-Type
Model Name
WKS-1240(1340)G2H04T
Size
-
Weight
-
Product Details

◆ 초소형 단상2회로 차단형
◆ 온도 Trip : 방열기(Heat Sink)온도상승 70℃이상
◆ 완벽한 초소형
◆ 맞춤형 방열판 적용
◆ DIN 레일 설치 표준형
◆ LED에 의한 입력 상태 표시

※ 안전을 최우선하여 생산을 보장합니다.

보호특성
◆ 과온도1 경보기능 출력(60℃-1b접점/100mA), (주문시 80℃-1b접점/100mA)
◆ 과온도2 경보기능 출력(80℃-1b접점/100mA)



(주)삼화디에스피 단상2회로 차단 G2H-Type WKS-1240(1340)G2H04T
