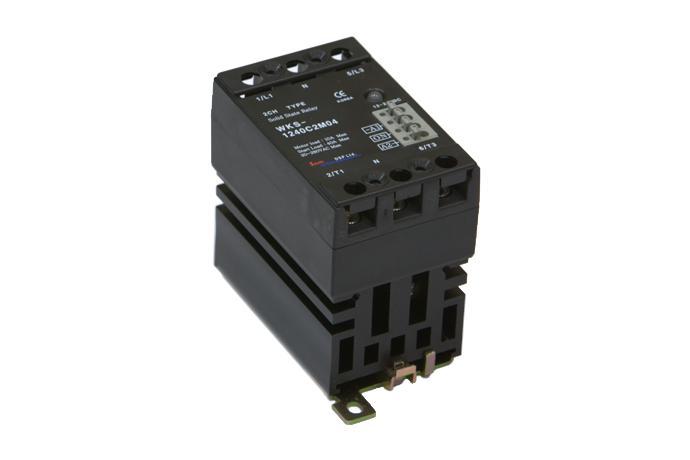

product Image
Motor Only (2 circuit each independent break)
Model Name
WKS-1220C2M04
Series
Wonder S.S.R
View All
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Product Type
Machine
Brand
-
SKU
58036
Product Name
Motor Only (2 circuit each independent break)
Model Name
WKS-1220C2M04
Size
-
Weight
-
Product Details

 ◆ Unified 2 circuit breake,respectively(2 pcs of SQ)
 ◆ Complete, compact units
 ◆ Tailor-made solution to current sinks
 ◆ DIN rail and panel mounting
 ◆ Currents 20A(Triac)
 ◆ Regulated input DC from 12 to 24V
 ◆ Protection by RC filter
 ◆ embeded self over voltage protection
 ◆ Optional protection by removable varistor
 ◆ To indicate trip output a,b by 2 colour LED(red,Green)
 ◆ Application : Heater & Load Control



SamWha DSP Motor Only (2 circuit each independent break) WKS-1220C2M04
