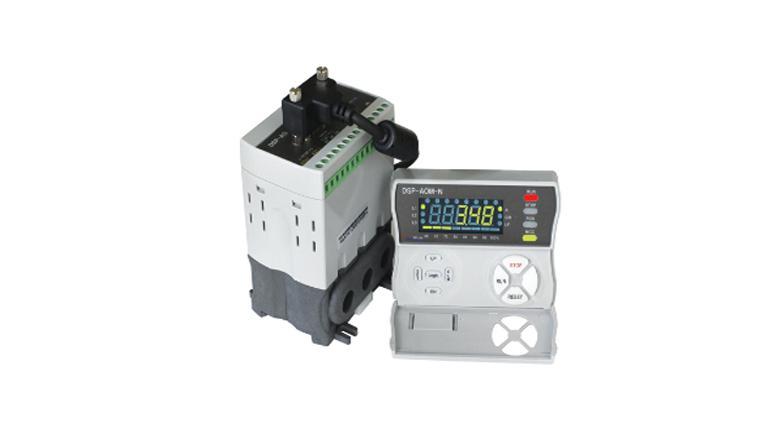

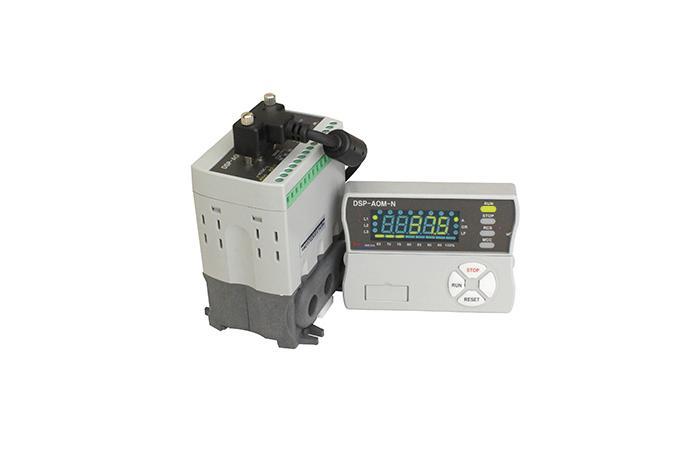

DSP-AOM-N (Meter with ON/OFF SW)

Digital Over current Motor Protection Relay/Panel Flush Mounting Type
 *Converter + Meter with RUN(ON)/STOP(OFF) SW, 5 digit window
 *Convenient selection for control position : Logic key/RCS↔MCC(Meter)
 -MCC : motor start/stop is executed by RUN-STOP key
 -RCS : motor start/stop is executed by external auto device
 *4E Class Protection Level
 -Over/Under Current,Phase Loss,Reverse Phase,
 -Current Unbalance,Locked Rotor,Ground Fault
 *T-I characteristic to protect over current:definite or inverse
 *Basic type:matched with external ZCT, Optional type:ZCT Embeded/External CT type is not available
 *Stable operation in various frequency environment
 *Correct indication based on RMS value
 *Wide application for ZCT rating to sense zero phase sequence current
 -AOM-N-A Type:200mA/1.5mA
 -AOM-N-V Type:200mA/100mV
 *Alarm for ZCT disconnection with converter in motor stop state

 ▶Note : Protection relay should be installed in the secondary part of Inverter.
