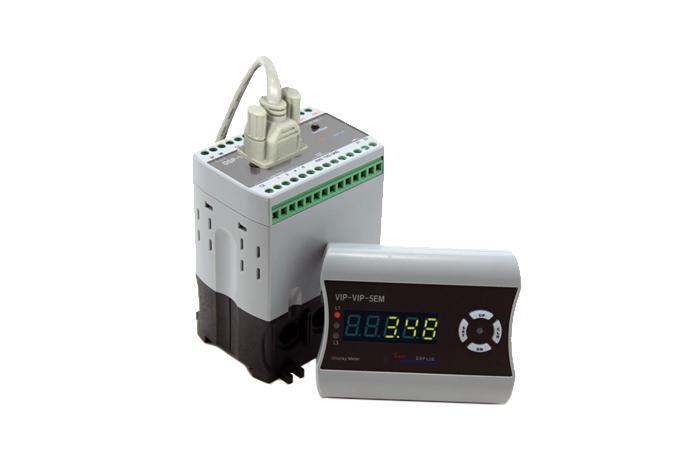

< Panel Flush Mounting Type>
 ■ To response for various motor starting system & to use for various application of trip output
 - Applied "Mode" : out/LooFF/a/b
 - Trip output :C1-M,97-98,07-08
 ■MCU based digital controL:precised motor protection
 ■ Protection Level:compact size,multi-function/4E Class[5SM:5E class]
 *Protection:Over/Under current/Phase loss/Reverse phase/Current unbalance/Locked rotor/Shock(Stall)/Ground fault/Short circuit(only for 5SM Type)
 ■ To keep a steady chracteristic in the noisy installed environment:embeded RMS chip /correct RMS vcurrent value
 ■ Instant trip time for GF protection:0.1~30sec/definite(all of type), 0.05sec/instant(only for 5 SM Type)
 ■ Instant trip for short circuit :0.05sec(only for 5 SM Type)
 ■ Indication for neccessary information in every 3 sec : current,load factor,earth current,AWT(accumulative working time)
 ■ High sensitive level and wide range protection for ground fault:30mA ~4A(Optional type:ZCT embeded)
 ■ Digital communication for PC network management
 *All of Type except 5CM:basically RS232
 *5CM Type :RS-485
 *5TM Type : 4~20mA
 *5SM Type : instant trip for short circuit protection
 ■ Main contactor auto close :SDDT/power recovered time within SDDT,DOMT/contactor close after DOMT
 ■ Auto,manual reset : selectable in "Mode"
 ■ Stable operation under various frequency from Inverter:1Hz~400Hz
