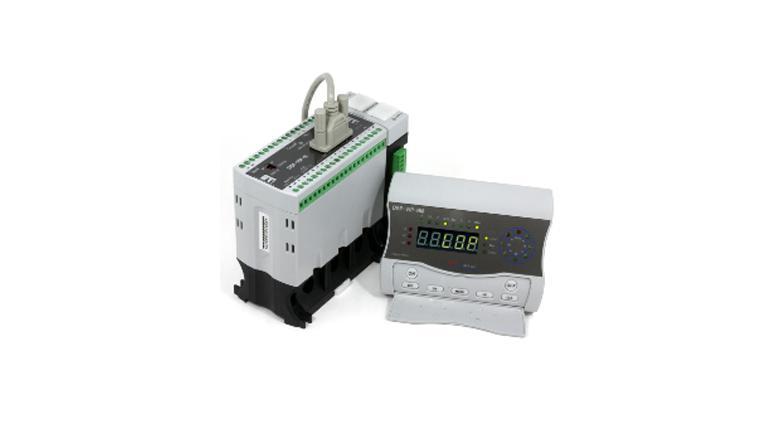

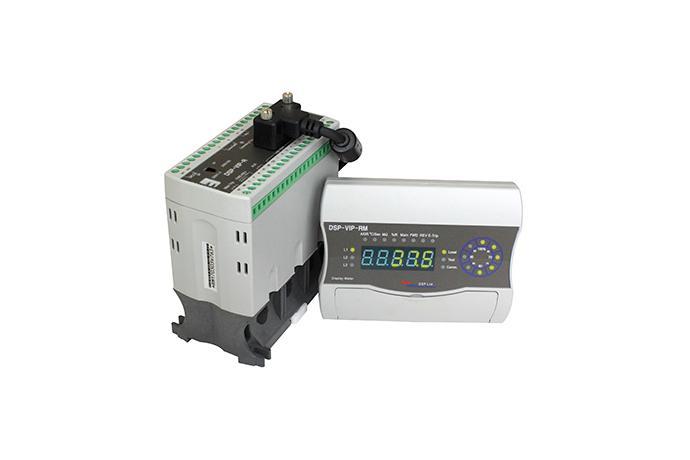

DSP-VIP-RTM/RM

Motor Protection Relay with DC500V Insulation resistance Measurement
 **NEP(New Excellent Product) approved by Government(NEP-MKE-2009-032)**
 ** Motor Stopping:Insulation Tester, Motor Working:Protection Relay**
 *Panel Flush Mounting Type:Converter,Display meter,Communication Module
 *Protection:Over/Under Current,Ground fault,Over Temp,Shock,Locked Rotor,Phase Loss,Reverse Phase
 *Indication:A,GR,TEMP,Insulation resistance(Line-earth),working time,Number of ON-OFF/MC
 *Measuring range for Insulation Resiatance:0.1MOhm ~ 500MOhm/500VDC
 *Alarm before trip:65~100% of "OC"
 *Additional Function:RS 422/485,232,,Shut down delay timer & Delay on-make timer
 *Pre-maintenance:Able to preset alarm point/O,U curr.GF,Temp,Shock(Stall),Number of MC ON-OFF,MOTOR working time,
 *Particulary Useful for process control and pre-maintenance as presetting various alarm factor
