SAMKUN CENTURY

SAMKUN CENTURY

Water Treatment System

Model

Series

Business


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Main Porducts


Fresh Water Supply Unit
Simple Construction | Easy Installation | Easy Maintenance | Easy Operation
The fresh water supply unit supplies fresh , warm and cold drinking water for the crew and It consists of technical system of water tank, sterilizer, re-hardening filter(mineralizer), calorifier and pumps.


Fresh Water Generator
Reverse Osmosis most commonly known for its use in drinking water purification from seawater, removing the salt and other substances. Reverse Osmosis is the process of forcing a solvent through a membrane from a region of high solute concentration to a region of low solute concentration by applying a pressure in excess of the osmotic pressure. We offer you package system which consist of Fresh water generator (Vaccum Evaporating type or RO type) & Fresh water supply system.


Hydrophore Tank
Capacity : 100 ~ 5,000L/hr
Fresh water will be stored and pressure it maintains.
The hydrophore tank is a welded steel fabrication, interior of which is specially coated with epoxy (PE coating or Rubber coating), a manhole is provided on the tank for inspection or cleaning the interior. All products are tested-welding point by penetration inspection. Hydrophore unit is available in the size from 100L to 5000L.


Hot Water Calorifier
Capacity : 50 ~ 3,000L/hr
In the galley, every time hot water is needed, Our H.W Calorifier is proper in that’s circumstance. It is used by shower, cooking, feeding etc.

Silver Ion Sterilizer
Capacity : 1,000 ~ 30,000L/hr
The bactericidal effect of silver is known from ancient times. Silver foils were used for treating wounds and silver vessels made it possible to store water. We supply silver ion sterilizer which remove micro-organisms by a catalytic method.


UV Sterilizer
Capacity : 1,000 ~ 30,000L/hr
The UV sterilizer of Samkun Century has superiority of operating system. It protects mineral components, but disinfect typical viruses, colitis germs, bacteria inwater. Emission of ultra violet rays : 253.7nm (Most effective wavelength for removing bacteria)

Auto Chlorinator(Sterilizer) with DE-Chlorinator
Capacity : 1,000 ~ 50,000L/hr
The function of Auto Chlorinator is to provide the water with the chlorine in order to sterilize the water which contains a variety of bacteria, bacillus, and so on. HOCL&OH Radical are formed when chlorine dissolves in water. And they have strong oxidizing power to destroy the microorganism in disinfection . This method can disinfect the water with easy and long term.

WATER SOFTENER
Water softening is the removal of calcium, magnesium, and certain other metal cations in hard water. Soft water extends the lifetime of plumbing(pipes) by reducing or eliminating scale build-up in pipes and fittings, and extends efficiency of heat exchanger. Water softening is usually achieved using lime softening or ion-exchange resins.

DE-IONIZER (DEMINERALIZATION UNIT)
Capacity : : 1,000 ~ 50,000L/ Hour
DE-IONIZER(Demineralization) is essentially removing all the minerals that can be found in water. This process is usually done when the water will be used for chemical processes and the minerals present may interfere with the other chemicals. The device can be widely used in various industries, and is useful for boiler feed water treatment in ships. Devices that perform similar functions include ION EXCHANGER, MIXED BED POLISHER(MBP).


Ozon Disinfect(Sterilizer)
Capacity : 1,000 ~ 50,000L/hr
Ozone can be used for water and air treatment. So it has been used for disinfection of drinking water in the Water Industry for over 100 years. When ozone disinfects harmful bacteria or pollutant, there are generally no by-products

Re-Hardening Filter(Mineralizer)
Capacity :1,000 ~ 30,000L/hr
The water which is generated by fresh water generator in vessel, cannot be used by drinking water directly, because of pH value, hardness none of mineral component. For using mineralizer, increase hardness, pH value, mineral component. Dolomite & re-hardening material are usually changed. If pH value is lower than 6.5, recharging activity much be done.

Hydrophore system of VFD(Variable Frequency drive)
A specific type of hydrophore system is needed for the efficiency of maintenance and saving energy.
Most conventional hydrophore tanks is too heavy and occupies too much space.
A VFD system is used to control process flow without the use of a separate controller.
Suitable sensors and electronics are used to interface the driven equipment with the VFD.

Drinking Water Fountain
▷ Floor stand type | ▷ Wall mount type | ▷ Cold water fountain | ▷ Hot & Cold water fountain
The Drinking water fountain is composed of a compressor, condenser, evaporator, silver ion filter, etc.
The drinking water provided from the drinking water fountain is directly connected to the fresh water line.
Also, the drinking water fountain is able to provide healthy and fine tasting water due to a Silver Carbon Filter which consistently sterilizes its contents.
Silver carbon is added to improve the continuity of sterilization.



Hot Water Boiler
Capacity : 10L Wall mount type
The Hot Water boiler is a small electronic appliance used for boiling water and maintaining it at a constant temperature in the galley.

Grease Trap
Capacity : 20GPM
The Grease Trap separates the grease and solids from waste water in the galley.
It is typically small enough to be installed beneath or adjacent to a sewer line.

Other Products



Air Dryer
AIR DRYER (HEATLESS TYPE) | REFRIGERATED AIR DRYER
Excessive water, and atmospheric contaminants in compressed air can cause a variety of operational problems for users of compressed air.
These include freezing of outdoor airlines, corrosion in piping and equipment, malfunctioning of pneumatic process control instruments, fouling of processes and products, and more.
To prevent these problems, an air dryer is used for removing water vapor from compressed air.





Heater
Heater
LO PRE-HEATER : It makes proper viscosity of lubricating oil for the purifier and ME/GE by heating lubricating oil at a constant temperature.

FO PRE-HEATER : Pre-heating lowers the viscosity of heavy fuel so that it can be properly atomized by the burner.

M/E JACKET PRE-HEATER : It keeps cooling water at a constant temperature, when the engineis stopped due to repairs.
This is the way to prevent problems which can occur by lowered temperature.




Fan Heater
The Fan heater works by using a fan to pass air over a heat element.
The Portable type is for ease in moving with a stainless steel heating element and all devices provide a dual protection against overheating.
It has a built-in thermostat and regular power, and a powered whole metal casing cover to resist rust.

▷ Heating element : Stainless Steel
▷ Adjustable thermostat control Overheat protection
▷ With Fan & Cooling
▷ Free standing & Portable type

Emergency Eye Wash & Shower
The Emergency eye wash & shower is essential equipment when using chemicals and hazardous substances.
Its purpose is to reduce workplace injury and keep workers away from various dangers.

▷ Durable - Excellent raw material / Anti corrosion
▷ Reliable - High quality
▷ Easy Installation



OZONE GENERATOR
An ozone generator is placed inside a foodstuff storage(Vegetable etc) in ships, Ozone is especially efficient in prolonging the life of food materials.

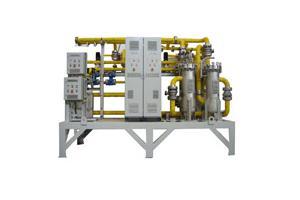

Unit Module (skid)
