SAMIL ELTEC

SAMIL ELTEC

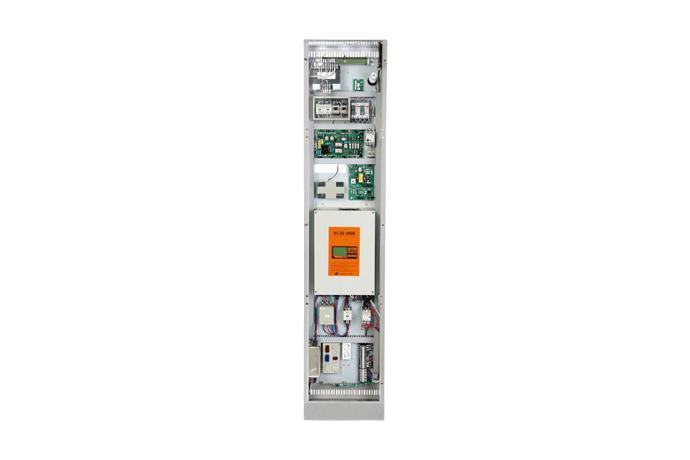

Control Panel

Model

Series

Control Panel


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

SICON-4000RL is an ultra-morden elevator system and specialized for roomless type. It can be installed in a building which doesn't have Machine room. This model is patented K-mark in Korea.

It is possible to change Roomless case size. It can work with A/B encoder signal, when it uses synchronous motors.




Specification


Power

3-Phase 200v / 380v / 415v / 440v

Frequency

50/60Hz

Nos. of stop

64 Stops

Speed

45~240m/min

Control Type

Rope type (Inverter)

Speed Reduction

Encoder (500~8192Pluse)

Display

Dot Matrix. / LCD

Group

8 Car

Usage

Passenger







Feature

ㆍIt can control up to 64 stops (for high raiser)

ㆍIt can control up to 240m/mim (for high speed)
    (Reference site: Menara ING building in Kuala Lumpur Malaysia)

ㆍExcellent Energy -Electric Power saving and Harmonic distortion reduction by applying ReGen Drive System.

ㆍBuilt in Parameter for 2 Car parallel operation setting
    - User can set by building’s operating conditions
    - Improved communication speed and stability by use of CAN communication

ㆍIt can control “Destination Dispatch Control System”
   (A best suitable lift among the lifts in group operation is dispatched when passenger registers the destination floor at the landing floor)

ㆍApplied high speed dual DSP 32bit
    - Various functions (various monitoring functions, failure detection record functions, etc)

ㆍIt can operate by A/B encoder’s signal only when using PMS Motor
    - Built-in magnetic detection algorithm for PMS Motor by A/B encoder’s signal
    - Operating by parameter settings without lock-in procedure

ㆍThere are two types operator, so user can choose one
   - Fixing type by supporter on the Main PCB (LCD + 9 keys)(non-detachable)
   - Using OPP-4000 unit (handheld type)

ㆍBuilt in PPM Calibration function for Auto deceleration distance calculation
    - It is easy to install at jobsite
    - No need to adjust deceleration distance manually after change parameter

ㆍBuilt in Safety line grounding detection function
ㆍ Applied Sin / Cos encoder as well as UVW encoder
