product Image
Double Power Vise
Model Name
MDV
Series
Vise
View All
Data
MDV
Manufacturer information
provider logo
SAMCHULLY

Hydraulic cylinder, Power vise, Scroll chuck, Drill, Tapping M/C, Drill chuck, Index, Rotary table and more

Problem with product info?
Update request
Manufacturer
SAMCHULLY
Product Type
Machine
Brand
-
SKU
35405
Product Name
Double Power Vise
Model Name
MDV
Size
-
Weight
-
Product Details

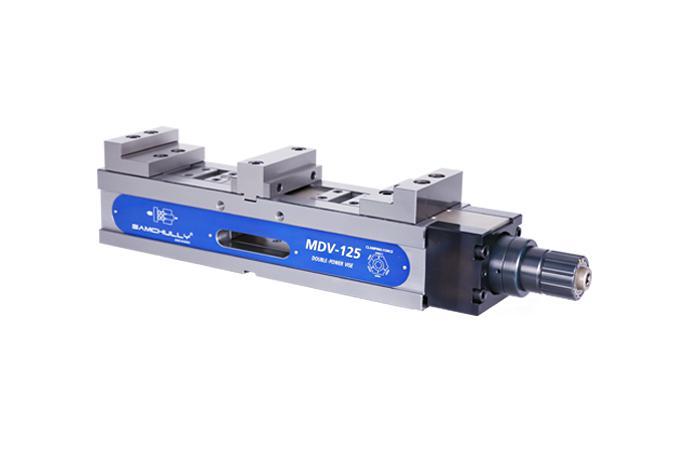

MDV

Double Power Vise

Consists of Two movable Jaws and One fixed Center Jaw for Double claming
Equipped with step Jaw & Middle Jaw suitable for various workpieces
Seal structure makes preventing the inner body from inflowing dust
Realize High Clamping Force by Mechanical gravity Device



Spec

  MDV-125
Jaw Width [mm]   125
Jaw Height [mm]   40
Max.Opening [mm] S1 141
S2 144.5
S3 187
S4 190.5
Total Height [mm]   145
Slider Height [mm]   105
Total Width [mm]   126
Slider Length [mm]   671
Max.Gripping Force [kN(kgf)]   40(4355)
Weight [kgf]   52
