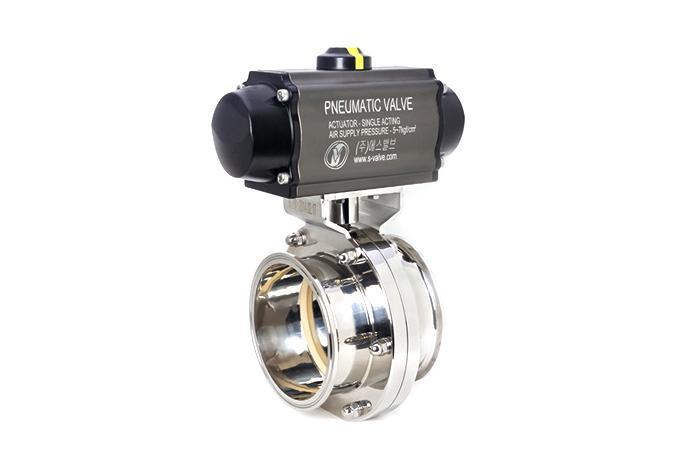

S-Valve
S-Valve
Description
Features
Size : ISO 5S~10S
Connection : ISO Ferrule, Male, Weld
Material
- Body : Forging STS316L, 304
- Casting STS 316L, 304
- Actuator : AL
Seat : Silicon, EPDM
Actuator
- AIR TORQUE
- Single Acting, Double Acting
- ISO Flange
Surface Treatment
- Internal Ra≤0.4㎛
- External Ra≤0.6㎛
- Other : Electrolytic Polishing
Working Temperature -10℃~120℃
Working Pressure 6㎏/㎠
