S-Valve

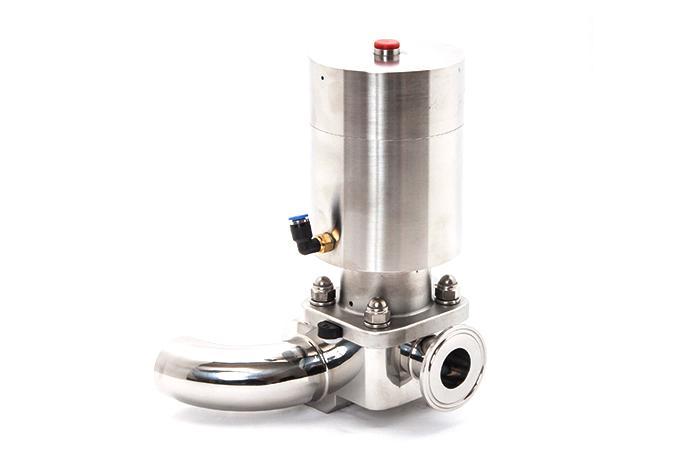

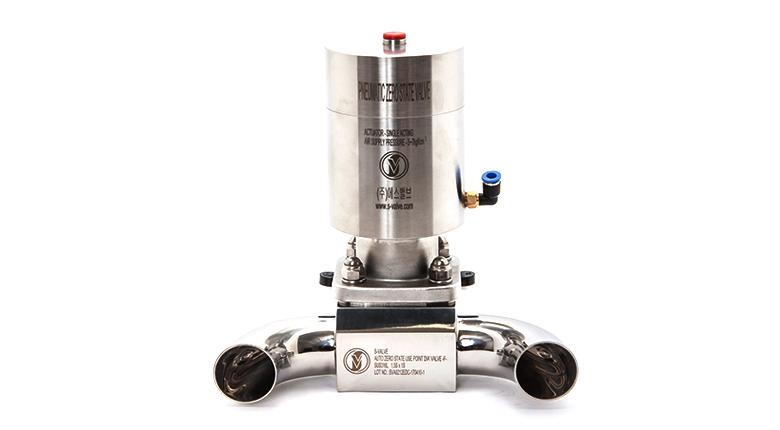

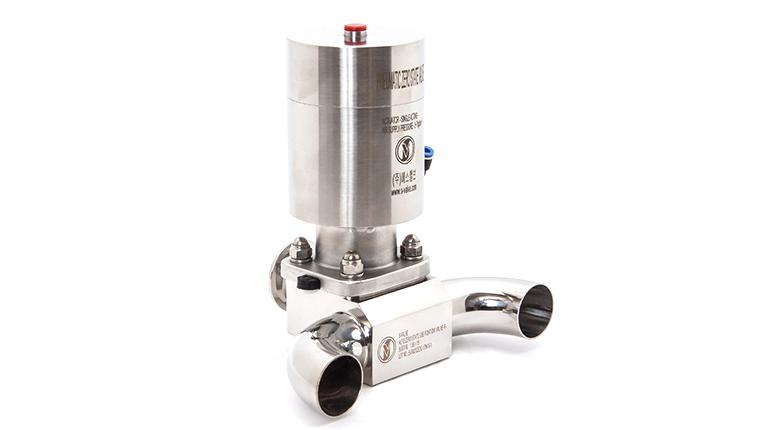

Pneumatic Zero State Use Point Diaphragm Valve
Model
Series
Pneumatic Diaphragm Valves
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
Features
Size : ISO 1S~3S
Connection : ISO Ferrule, Weld
Material
- Body : Forging STS316L
- Bonnet : Casting STS304
- Cylinder : STS304
Diaphragm
- TFM - FDA, Single
- TFM - FDA, Two piece
- CFR21 Section 177.1550
Surface Treatment
- Internal Ra≤0.4㎛
- External Ra≤0.6㎛
- Other : Electrolytic Polishing
Working Temperature -5℃~150℃
Working Pressure 6㎏/㎠
Operating Air Pressure 4~7㎏/㎠
