S-Valve

S-Valve

Motor Type

Model

Series

Pneumatic Diaphragm Valves


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Features

Size : ISO 1S~4S
Connection : ISO Ferrule,Male,Weld
Material
 - Body : Casting STS316L
 - Forging STS316L
 - Bonnet : Casting STS304
Motor
 - N : 2000
 - Operating time : 50sec
 - Power : 220V ±10%, 60Hz
Diaphragm
 - TFM – FDA, Single
 - TFM – FDA, Two piece
 - CFR21 Section 177.1550
Surface Treatment
 - Internal Ra≤0.4㎛
 - External Ra≤0.6㎛
 - Other : Electrolytic Polishing
Working Temperature : -5℃~150℃
Working Pressure : 6㎏/㎠

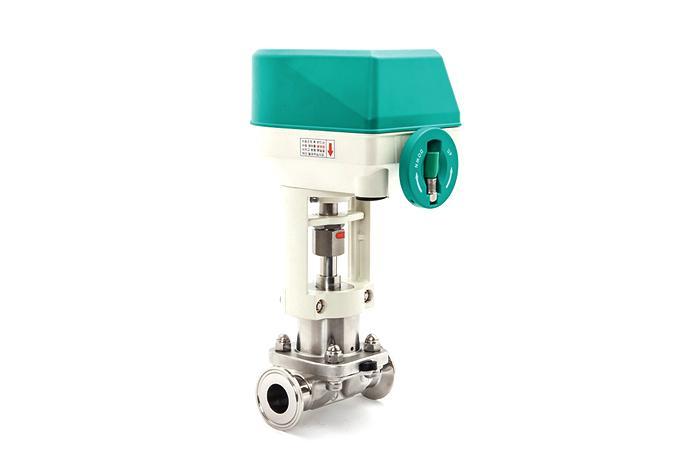

(주)에스밸브 Motor Type SVA310
