Product Name Rotary Type 2 lane Automatic Packaging Machine
Model SPS-R2850
Series Rotary Packaging Machine
Catalog
Product Description

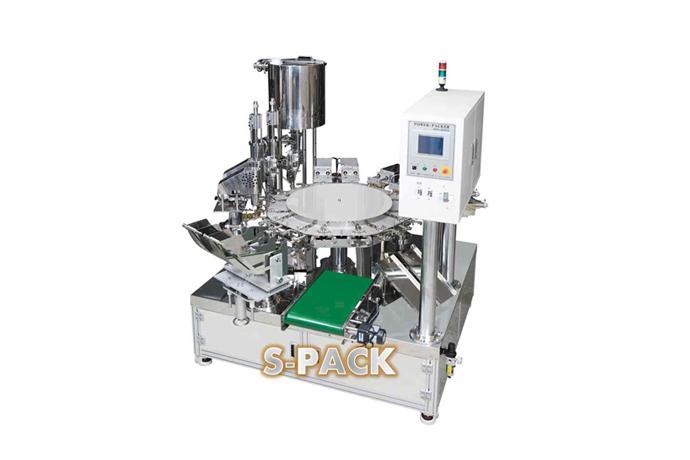

S-PACK Rotary Type 2 lane Automatic Packaging Machine SPS-R2850

SPECIFICATIONS

MODEL : SPS-R2850
PRODUCTS KIND : LIQUID & SAUCES
SPEED : 35~50packs/min.
FILLING CAPACITY : 50~200g
PACK LOADAGE : 500~1,000 packs
POUCH TYPE : Stand-Up/Shape/3Directional pouch
PACKING SIZE : (W)90~130mm, (L)150~200mm
ELECTRIC POWER : 220V/50~60Hz/3Phase/5.0kw(Max.)
DIMENSION : (W)900×(L)1,300×(H)1,700
WEIGHT : About 1,000kg
COMPRESSED AIR : 5~6kg/㎠(AIR COMPRESSOR-Option)




FEATURE

This machine is a two line Rotary type filling Machine.
Standing pouch, three seal pouch, shape pouch.
Accurate division through precise index application and roller drive, no vibration and noise.
Speed can be controlled using the inverter
High-performed automatic packing machine (opening, filling, sealing, cooling sealing and discharging)
The empty pack can be detected.
Warning alarm system: the alert message on the each feature.
Touch screen control panel and the protruded button switch, so it is easy to operate.
Control the sealing temperature depending on the material of the pack
Safe from harmful bacteria and fungi due to removing the margin on the sealing part.
