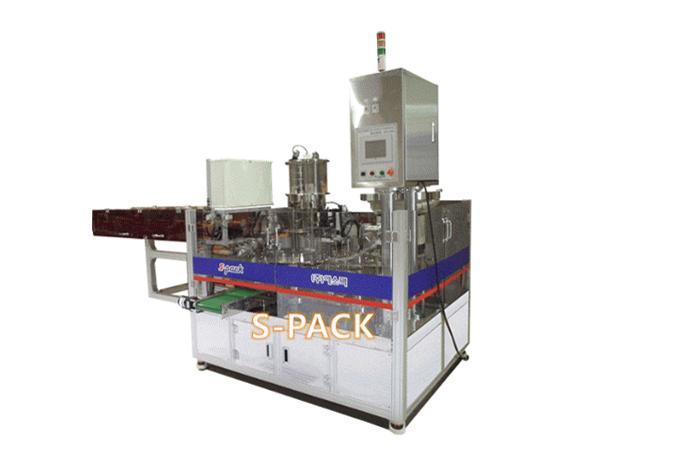

|Product Name||Spout 2 Lane Automatic Packaging Machine|
|Series||Spount Packaging Machine & Adhesive machine|
MODEL : SPS-A2450
PRODUCTS KIND : LIQUID & SAUCES
SPEED : 35~45packs/min.
FILLING CAPACITY : 50~200g
PACKING TYPE : 2LINE ROTARY TYPE(INDEX CAM)
POUCH TYPE : SPOUT POUCH(M/STAND-UP/FLAT)
PACKING SIZE : (W)60~120mm, (L)100~180mm
SPOUT HALL : ∅9(SPOUT HALL SIZE)
ELECTRIC POWER : 220V/50~60Hz/3.0Kw(Max.)
DIMENSION : W/1,400×L/3,000(Chute 1,300)×H/1,900
WEIGHT : About 1,000kg
COMPRESSED AIR : 5~6kg/㎠(AIR COMPRESSOR-Option)
PRINTING : Optional
Suitable for mass production (2 lane).
A machine used for products convenience.
Possible to pack liquid and viscous products and no restriction for pouch shape.
Accurate division through precise index application, no vibration and noise.
High-performance rotary type, which enables fully automated pack supplying, filling and capping.
Possible to adjust the amount of product according to customer needs.
The empty pack can be detected.
Hygienic due to clean rooms case installation.
Control panel of the machine composed of the newest screen and protruding button, operate easily.
All information such as production quantity and total production,can be understood at a glance through the screen.
In case of error, simple partial examination is possible through inspection mode.
Pouch bulk supply device is installed.
