Product Name Spount 1 Lane Automatic Packaging Machine
Model SPS-A430
Series Spount Packaging Machine & Adhesive machine
Catalog
Product Description

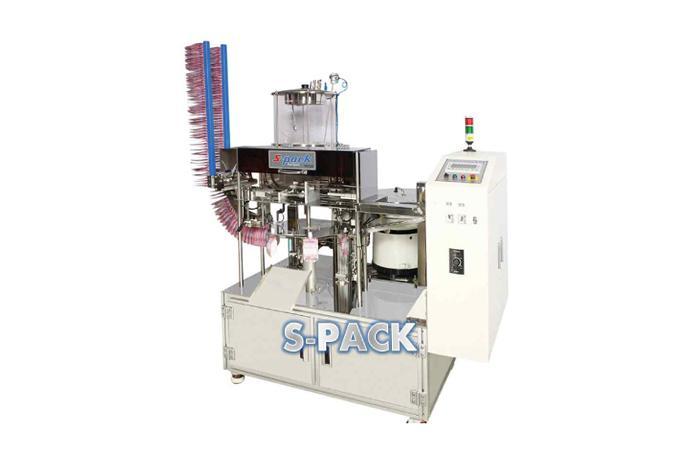

S-PACK Spount 1 Lane Automatic Packaging Machine SPS-A430

● SPECIFICATIONS
MODEL : SPS-A430
PRODUCTS KIND : LIQUID & SAUCES
SPEED : 18~25packs/min.
FILLING CAPACITY : 50~200g
PACKING TYPE : 1LINE ROTARY TYPE(INDEX CAM)
POUCH TYPE : SPOUT POUCH(M/STAND-UP/FLAT)
PACKING SIZE : (W)60~120mm, (L)100~180mm
SPOUT HALL : ∅9(SPOUT HALL SIZE)
ELECTRIC POWER : 220V/50~60Hz/3.0Kw(Max.)
DIMENSION : (W)900×(L)1,300×(H)1,700
WEIGHT : About 350kg
COMPRESSED AIR : 5~6kg/㎠(AIR COMPRESSOR-Option)
PRINTING : THERMAL PRINTING(Solid Ink)



● FEATURE

Automatic 1 line machine model.
Convenient product filling and helps the drinking process.
It can fill any liquids and there is no limit in the form of the pouch.
Pouch Supply / Filling / Capping fully automated(FULL-AUTO)
Accurate division through precise index application, no vibration and noise.
No vibration and Noise.
High Performance Rotary type.
It can be installed in tight spaces.
Product capacity adjustment possible.
No loss of pouches ( empty pouch storage )
Easy to operate ( Screen control panel )
Easy to check – specific part ( when an error occurs )
