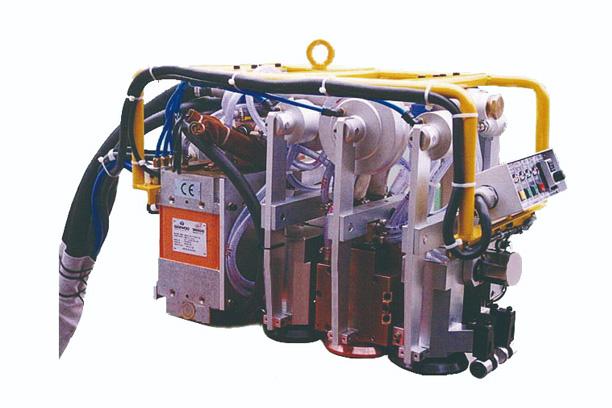

INVAR TUBE SEAM W/D M/C

- FEATURES & FUNCTIONS

￭ THIS IS A SEAM WELDING MACHINE FOR MANUFACTURING INVAR TUBE IN SHOP
￭ CONSIST OF WELDING MACHINE, CONTROL UNIT, WELDING MONITOR SYSTEM AND SETTING JIG.
￭ EQUIPPED WITH SERVO MOTOR (OPTION)
     - MAINTAIN CONSTANT WELDING SPEED BY SERVO MOTOR WITH ENCODER
     - NO A NOISE
￭ OBTAIN A EXCELLENT WELD QUALITY BY CONSTANT CURRENT CONTROL OF CONTROLLER
     - DETECT THE WELD AMPERE BY TROIDAL-COIL AND FEEDBACK CONTROL WELD CURRENT
     - FEEDBACK TIME IS 1/120SEC,  OUTPUT CURRENT ACCURACY ±2%
￭ COMPUTER SAVE THE WELDING DATA DURING WELD, AND PRINT IT FOR REFERENCE
￭ IT IS POSSIBLE TO WELD EACH POSITION OF INVAR TUBE AND TO SET THE JUNCTION KIT AND
  THE INVAR TUBE FROM 90° TO 105.52° ACCURATELY BY OPERATION THE SWITCH.
