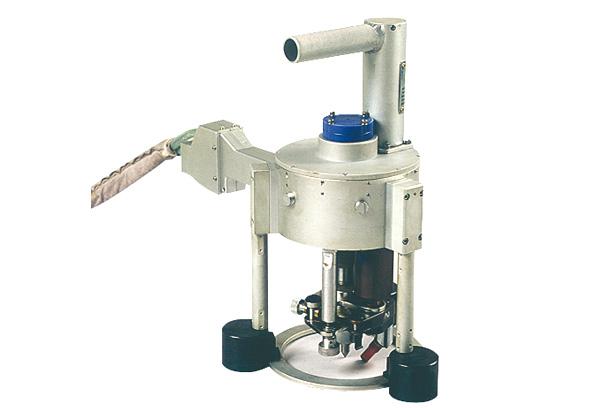

AUTO TIG W/D M/C FOR COUPLER BASE

- FEATURES & FUNCTIONS

￭ THIS IS A CIRCULAR TIG WELDING MACHINE FOR COUPLER BASE LAYED ON INNER HULL
￭ THE CABLE IS NOT BEING TWISTED
    - USED CONTACT SLIDE METHOD FOR ELECTRIC CONDUCTION
￭ MACHINE IS MOUNTED ON THE INNER HULL BY 3-MAGNET WITH COUPLER BASE CLAMPED BY CHUCK
￭ WELDING IS STOPPED BY END SENSOR AFTER ONE ROTATION AND RETURN BACK TO HOME POSITION
￭ EARTH LINE IS MOUNTED ON WELDING MACHINE, SO NO NEED CONNECTION OF EARTH CABLE MORE
￭ REMOTE OPERATING SWITCH IS MOUNTED ON HANDLE OF MACHINE
￭ WORK PIECE IS PRESSED BY SPRING PRESSURIZATION DEVICE  FOR A LESS GAP
￭ NO NEED TACK WELDING
