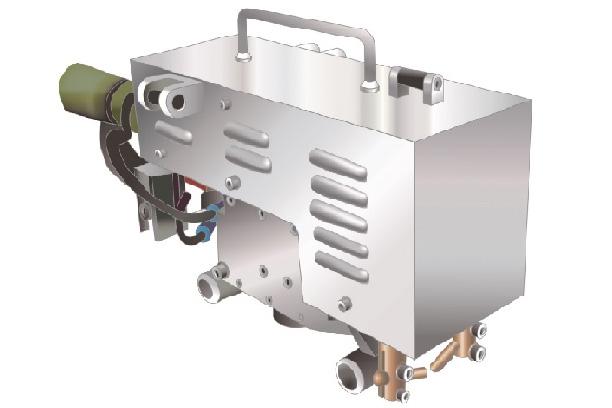

SPOT W/D M/C FOR STRAKE/TONGUE
Model Name
-
Series
96-2 (For LNG Carrier)
View All
Data
-
Manufacturer information
provider logo
ROBOWEL

Specialized in welding automation, arc welding and resistant welding for LNG tank

Problem with product info?
Update request
Manufacturer
ROBOWEL
Product Type
Machine
Brand
-
SKU
115952
Product Name
SPOT W/D M/C FOR STRAKE/TONGUE
Model Name
-
Size
-
Weight
-
Product Details

SPOT W/D M/C FOR STRAKE/TONGUE

Product Specifications

WELDING CURRENT
1,500 Amp
TRAVEL SPEED
MAX. 2,500 mm/min
WELDING MATERIAL
0.7+0.5+0.7mmt & 0.7+1.0mmt INVAR STEEL
APPLICABLE AIR PRESSURE
1 - 7 kgf/cm2
ELECTRODE PRESSURE METHOD
BY AIR CYLINDER
TRANSFORMER
7KVA 100%, 10KVA 50%
DRIVE UNIT
SERVO MOTOR, 600 RPM, 0.35KW (OPTION)
REDUCTION RATE
30 : 1
WELDING ELECTRODE
∅10
LENGTH OF CABLE
STANDARD - 25M / OPTION - 40M
DIMENSION / WEIGHT
194W x 255H x 324L / Ab. 15KG
METHOD OF ADJUST WELD PITCH
ACTUAL LENGTH CONTROL BY ENCODER
CONSIST OF
WELDING CARRIAGE, MOBILE CARRIAGE, CABLE & HOSES, REMOTE PENDANT
