MARK-III PLASMAWELDING MACHINE
Model Name
-
Series
MEMBRANE MARK-III (For LNG Carrier)
Data
-
Manufacturer information
provider logo
ROBOWEL

Specialized in welding automation, arc welding and resistant welding for LNG tank

Problem with product info?
Update request
Manufacturer
ROBOWEL
Product Type
Machine
Brand
-
SKU
115944
Product Name
MARK-III PLASMAWELDING MACHINE
Model Name
-
Size
-
Weight
-
Product Details

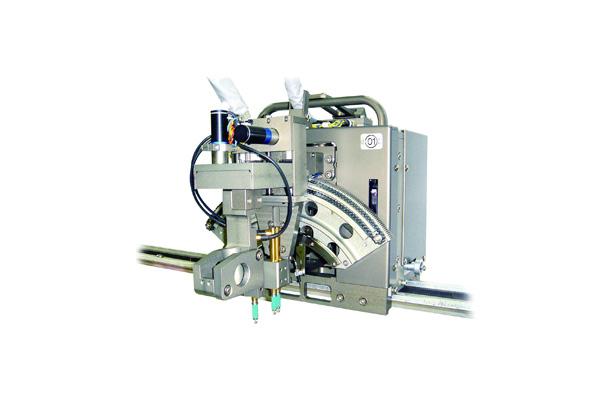

MARK-III PLASMAWELDING MACHINE

This machine is for the plasma welding of membrane sheets (stainless steel, 1.2t) for Mark-III type LNG tank.
This machine can automatically weld the overlapping joint section of the membrane sheet, where the curved and flat areas cross over.
It can also control the position of the welding torch by its parts, and change the welding condition by sections.

Product Specifications

MACHINE PHASE
Carriage Travel along Guide Rail
WELDING METHOD
Plasma Welding, Overlay Welding
WELDING POSITION
Fillet, Vertical-Up, Vertical-Down, Horizontal-Up, Horizontal-Down, Overhead
APPLICATION USE
Lap joint Welding
POWER
Control Box - Alternation Current Single Phase 220V, Power Source & Cooling Unit - Alternating Current 3 Phase 220V
CONTROL METHOD
Auto Working by Sensor and PLC Program
SEAM TRACKING
Up/Down - Auto Seam Tracking by Sensor, Forward/Backward - Inching Adjust by Worker
CONSIST OF
Carriage, Control Box, Power Source, Rail, Welding Torch Other Cable


Product Characteristics



ROBOWEL
Specialized in welding automation, arc welding and resistant welding for LNG tank
Founded in Korea in 1975, Robowel has developed expertise in the area of welding machines. Robowel’s welding automation system and automatic welding carriages help maximize the productivity in different industrial fields, and it has the technological capacity to produce spot welding machines and automatic welding machines for LNG tanks which play key roles in the assembly of automobiles and the construction of special ships. At Robowel our greatest emphasis is on responding more quickly and accurately to customer needs. When it comes to welding automation, we are here to give you the best solution. We are always ready to provide technologically efficient means for the development and use of limited resources. That’s why our customer companies around the world choose Robowel as ever.
