This product is manufactured by
POONGKANG PRECISION
Manufacturer information
POONGKANG PRECISION
Ejector Pin, Pin, Punch, Sprue bushing, Locating Rings, Knurls, Knurling Tolls Holder and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
POONGKANG PRECISION
Product Type
Machine
Brand
-
SKU
139188
Product Name

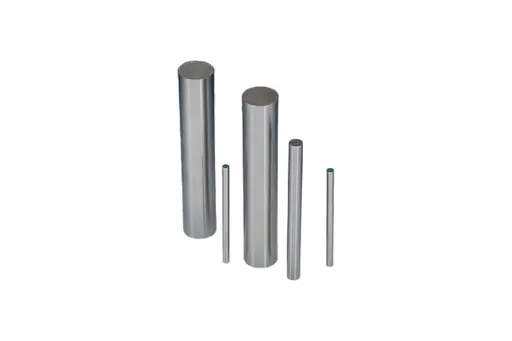

Straight Pin
Model Name
-
Size
-
Weight
-
Product Details
Cross Section
Product Features
- Use original material made in both Korea and Japan
- Outstanding wear resistance
- Uniform tolerance and hardness, and outstanding straightness and roundedness
Material & Hardness
|
Product
|
Material
|
Hardness
|
|
SK PIN
|
SUJ-2
|
HRC60±1
|
|
HS PIN
|
SKH-51
|
HRC61±1
|
Standard
Unit(mm)
|
D (Ø)
|
L
|
D (Ø)
|
L
|
|
0.5~2.9
|
75
|
19.0, 19.5
|
150
|
|
3.0~4.9
|
80
|
20.0, 20.5
|
150
|
|
5.0~7.9
|
90
|
21.0, 21.5
|
150
|
|
8.0~9.9
|
100
|
22.0, 22.5
|
150
|
|
10.0~11.9
|
120
|
23.0, 23.5
|
150
|
|
12.0~13.0
|
130
|
24.0, 24.5
|
150
|
|
13.5
|
130
|
25.0
|
150
|
|
14.0, 14.5
|
140
|
26.0
|
150
|
|
15.0, 15.5
|
150
|
27.0
|
150
|
|
16.0, 16.5
|
150
|
28.0
|
150
|
|
17.0, 17.5
|
150
|
29.0
|
150
|
|
18.0, 18.5
|
150
|
30.0
|
150
|
