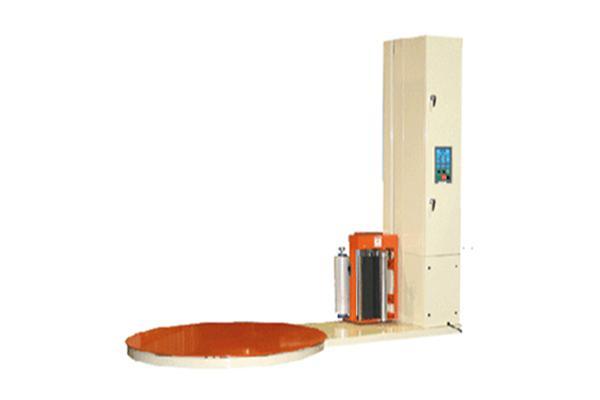

Semi-automatic Wrapping Machine
Model Name
DH-601
Series
Wrap Baler
View All
Data
-
Manufacturer information
provider logo
POJANGKOREA

Packing machine manufacturer, Bending machine, Shrinking packing machine, Vacuum packing machine and more

Problem with product info?
Update request
Manufacturer
POJANGKOREA
Product Type
Machine
Brand
-
SKU
64440
Product Name
Semi-automatic Wrapping Machine
Model Name
DH-601
Size
-
Weight
-
Product Details

Specifications

Model DH-601
Packaging size Max. 1200X1200mm
Packaging height Max. 2200mm
Packaging Weight Max. 1500kg
Turntable Size 1500X95mm(W,H)
Turntable speed Max.12 rpm
Film expansion 150∼250%
M / C Size 1500X2605X2485mm
Power Supply 1P/3P, 220V, 60Hz























Features

- Easy operation, operation is possible even for beginners.
- SEFT START & SOFT STOP prevent falling, so the product
- Around freely set the number of repeat upper and lower (1-9 times)
- Mounting height automatically detects product SENSOR
- TURN TABLE adjustable rotation (Max. 15PRM)
- FILM adjustable upper and descent speed (Max. 15PRM)
- Capacity: up to 60 PALLETS / Hr (manual time)


- OPTION
· Upper pressure plate (TOP-PRESS)
· Sloping for HAND LIFTER (RAMP)
