Industrial machine manufacturer, Tube, liquid filling machine, Packaging machine, Sealing machine and more
This liquid surface control system is designed for packing a various products in small quantities.
Application
- Low & medium viscosity products.
- Cosmetics (skin, lotion etc.)
- Detergents(window's cleaner, car windshield fluid etc.)
- Alcoholic liquors, liquid foods.
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specification
- Filling Range : 30~2,400㎖ (Option : Change Parts)
- Capacity : 10~30EA/min
- Liquid Contact Part : SUS 304, Teflon (Option : SUS 316)
- Pressure Tank : 200ℓ
- Compressed Air Consumption : 4㎏/㎠, 100N ℓ/min
- Dimension : 700W*610D*1,570H (mn)
- Weight : 70㎏
PV type filler with piston generated from compressed air is simple and easy to operate.
Available to supply explosion free product upon request.
Application
- Low to high viscosity products.
- Cosmetics, Medicines, Detergents, Liquid Foods, Lubricants, Agricultural Chemicals, Paint etc.
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specification
- Filling Range : 10~2,000㎖ (Option : Change Parts)
- Capacity : 10~30EA/min
- Liquid Contact Part : SUS 304, Teflon ( Option : SUS 316)
- Hopper : SUS 304, 50ℓ
- Compressed Air Consumption : 5㎏/㎠, 200Nℓ/min
- Dimension : 640W*960D*1,760H (mm)
- Weight : 85㎏
Option
- Explosion proof type.
- Cut-off nozzle.
- Nozzle up-down device.
PV type filler with piston generated from compressed air is simple and easy to operate.Available to supply explosion free product upon request.
Application
- Low to high viscosity products.
- Cosmetics, Medicines, Detergents, Liquid Foods, Lubricants, Agricultural Chemicals, Paint etc.
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specification
- Filling Range : 0.5~20ℓ (Option : Change Parts)
- Capacity : 2~20EA/min
- Liquid Contact Part : SUS 304, Teflon (Option : SUS 316)
- Compressed Air Consumption : 5㎏/㎠, 250Nℓ/min
- Dimension : 640W*760D*1,450H (mm)
- Weight : 65㎏
Option
- Explosion proof type.
- 2-Piston.
- Nozzle up-down device.
With this PR type filler, it is easy to change the filling volume and retains excellent accuracy.
This machine is very effective for small volume filling (10~100㎖).
Application
- Low & medium viscosity products.
- Cosmetics, Medicines, Detergents, Liquid Foods, Agricultural Chemicals etc.
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specification
- Filling Range : 3~1,000㎖ (Option : Change Parts)
- Capacity : 30~80EA/min
- Liquid Contact Part : SUS 304, Teflon (Option : SUS 316)
- Power Consumption : 220V*120W
- Dimension : 470W*365D*530H (mm)
- Weight : 36㎏
Option
- Cut-off nozzle.
- Nozzle up-down device.
PV type filler with piston generated from compressed air is simple and easy to operate.
Available to supply explosion free product upon request.
Application
- Low to high viscosity products.
- Cosmetics, Medicines, Detergents, Liquid Foods, Lubricants, Agricultural Chemicals, Paint etc.
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specification
- Filling Range : 0.5~20ℓ (Option : Change Parts)
- Capacity : 2~20EA/min
- Liquid Contact Part : SUS 304, Teflon (Option : SUS 316)
- Compressed Air Consumption : 5㎏/㎠, 250Nℓ/min
- Dimension : 640W*760D*1,450H (mm)
- Weight : 65㎏
Option
- Explosion proof type.
- 2-Piston.
- Nozzle up-down device.

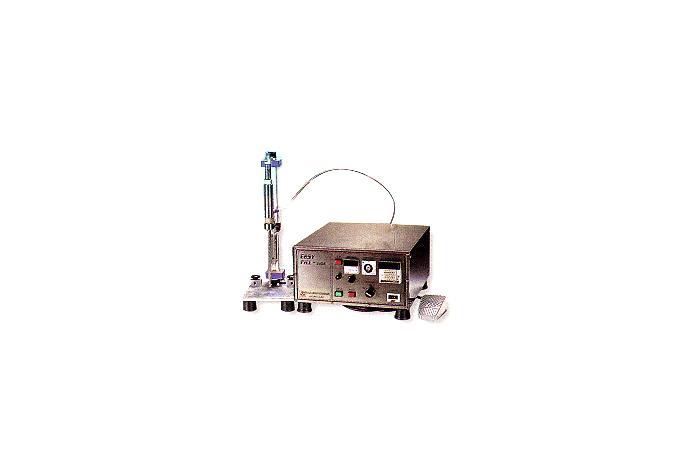

This new developed desk top model is easy to move. With a fixed metering, no extra hopper is needed.
Application
- Low & medium viscosity products.
- Cosmetics (Skin, Lotion etc.)
- Liquid Foods (Cooking Oil, Juice, Soy bean Sauce, Honey, Ketchup etc.)
- Detergents (Window's Cleaner, Car's Windshield Fluid, Kitchen Soap etc.)
- Medicine, Agricultural Chemicals, Lubricants, Liquid Chemical products etc.
Feature
- Simple installation and movement.
- Easy operation.
- Selective operation mode : Auto. Manual.
- Self cleaning.
- Wide range for filling quantity : 5~1,000cc.
- High filling accuracy : Below+-0.3%
- Easy change filling volume (during the operating).
- Self shake off liquid : Dripping prevention system.
Option
- Bottom up nozzle driving unit.
- Weight : 45㎏
This capper is a 2 rubber wheel rotating device designed for scew capping.
The torque control unit located on the upper rubber wheel assures perform precisely.
Application
- Round Screw Cap.
- Trigger & Pump Cap.
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specifications
- Capacity : 20~30EA/min
- Moter : 220V*90W
- The Control Range for Capping Torque : 5~20㎏/㎝
- Compressed Air Consumption : 5㎏/㎠, 20Nℓ/min
- Dimension : 450W*300D*640H (mm)
- Weight : 30㎏
Option
- Bottle Height : 80~350mm
- Bottle Diameter : 30~200mm
- Cap Size : φ20~60
This air chuck type capper with silicone rubber is designed for special cap of plating.
No damage is accurred on the cap in operation
Application
- Round Screw Cap (Gilf Cap, Gold Foil Cap etc.)
Feature
- Designed for packing a various products in small quantities
- Low plant investment
- Simple and Easy to operate
- Small and light weight
- Be in good order
Specifications
- Capacity : 20~25EA/min
- Moter : 220V*90W
- The Control Range for Capping Torque : 5~20㎏/㎝
- Compressed Air Consumption : 5㎏/㎠, 50Nℓ/min
- Dimension : 400W*350D*600H (mm)
- Weight : 35㎏
Option
- Bottle Height : 80~250mm
- Bottle Diameter : 30~200mm
- Cap Size : φ20~60
