MYUNGIL FOAMTEC

MYUNGIL FOAMTEC

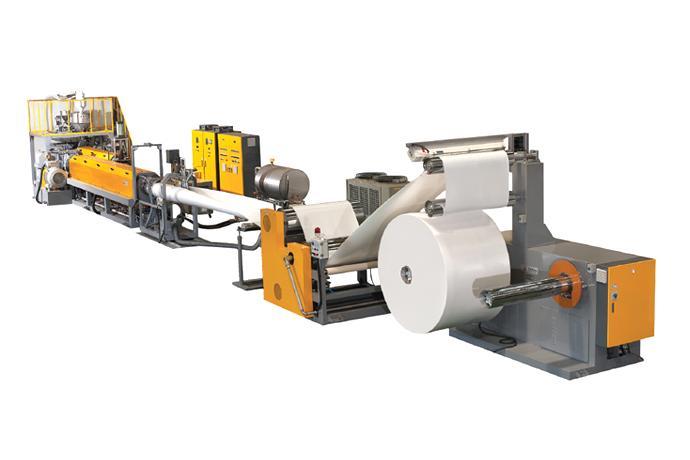

PS Foam Sheet Extrusion Lines

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

PS FOAM SHEET EXTRUSION LINE (TYPICAL SPECIFICATION)

MODEL

PS80-105
(FOMICO®)

PS90-120
(FOMICO®)

PS100-130
(FOMICO®)

PS115-150
(FOMICO®)

PS150-200
(FOMICO®)

Thickness (mm)

1.0 ~ 3.5

1.0~4.0

1.0~4.5

1.0~6.0

1.0~6.0

Width (mm)

500~1,200

500~1,200

500~1,200

500~1,200

500~1,200

Throughput
(approx)

Conventional
screw

130

200

270

350

550

FOMICO®*

150~200

230~280

320~400

450~550

650~700

Density (kg/m3)

40~130

Extruder type

Tandem

Tandem

Tandem

Tandem

Tandem

Screw dia.(mm)

80 and 105

90 and 120

100 and 130

115 and 150

150 and 200

L/D

34/1 and 32/1

32/1 and 32/1

33/1 and 33/1

32/1 and 31/1

33/1 and 32/1

Blowing agent

Hydrocarbon

Hydrocarbon

Hydrocarbon

Hydrocarbon

Hydrocarbon

Drive system

A.C Motor & Variable Frequency Invertor

Heating

Electric Heaters

Machine weight (kg)

15,000

17,000

19,000

23,000

32,500

Barrel material** (OPTIONS)

[1st & 2nd, SACM645] (Bimetallic)

Control system (OPTIONS)

Touch Screen controlled with PLC

Winder (OPTIONS)

Tension control
300mm core
2,000mm winding dia.

Pumping system (OPTIONS)

Nikkiso&Lewa duplex or triple diaphram pump



Notes:
- FOMICO®* incorporates BARR‘s ET/VBET screw technology which provides customers with higher throughput and lower energy consumption than conventional screw designs.
- The blowing agent** is added via a diaphragm pump.
- An optional metering system is also available.
- The line design can be further customized to meet specific customer requirements.

MYUNGIL FOAMTEC PS Foam Sheet Extrusion Lines PS-Series


Product overview

Myung-il Foamtec Co. built its product know-how for over 30 years since it developed and started to supply PS foam sheet machines in 1984.
The constant efforts to drive technological innovation, improve quality, and develop a wide variety of new products help Myung-il Foamtec’s growth into a global company.

Major strengths

PS foam sheet extrusion line by Myung-il Foamtec Co. enjoys a stable quality system backed by constant product R&D that also saves maintenance cost.
