Foam Scrap Recycling Systems (TYPICAL SPECIFICATION) MODEL
|
MODEL
|
MI-RC 130
|
MI-RC150
|
MI-RC170
|
|
Material
|
PSP;XPS;EPE
|
PSP;XPS;EPE
|
PSP;XPS;EPE
|
|
Material feed
|
Single/Twin feeding
|
Single/Twin feeding
|
Single/Twin feeding
|
|
Screw dia. (mm)
|
130
|
150
|
170
|
|
Extruder Type
|
Conical Single/twin
|
Conical Single
|
Conical Single
|
|
Throughput
(kg/hr)
|
Die face cut
|
250
|
100
|
550
|
|
Water flush
|
160
|
250
|
300
|
|

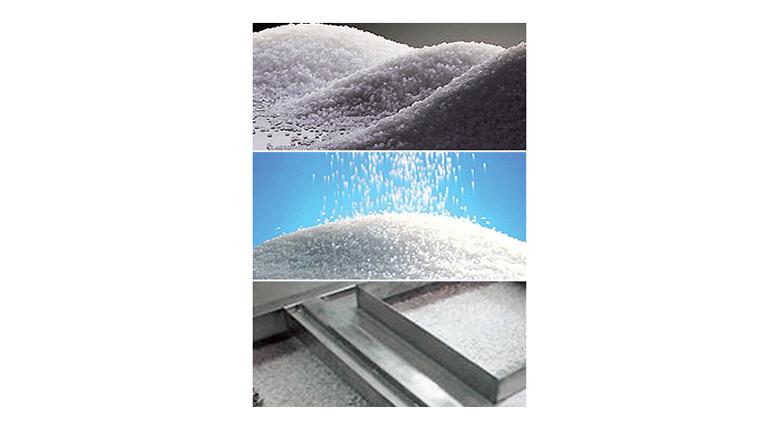

Granule size
|
3~5 mm
|
3~5 mm
|
3~5 mm
|
|
Moisture content
|
< 3%
|
< 3%
|
< 3%
|
|
L/D
|
30/1
|
34/1
|
34/1
|
|
Cutting type
|
Die face cut, Water flush
|
Die face cut, Water flush
|
Die face cut, Water flush
|
|
Die type
|
Horizontal
(melt flow direction)
|
Horizontal
(melt flow direction)
|
Horizontal
(melt flow direction)
|
|
Drive System
|
A.C Motor & Variable
Frequency Invertor
|
A.C Motor & Variable
Frequency Invertor
|
A.C Motor & Variable
Frequency Invertor
|
|
Gear Box**
|
SNCM21 heat treatment and polishing
|
SNCM21 heat treatment and polishing
|
SNCM21 heat treatment and polishing
|
|
Space requirement
|
7(L)x2.5(W)x6(H)M
|
7(L)x2.5(W)x6(H)M
|
7(L)x2.5(W)x6(H)M
|
|
Degassing
|
By vaccum
|
Notes :
- The Gear Box has been designed and its performance validated using the „Super-Computer“ available at the Korean Institute of Science.
The gear box incorporates bearings providing a 10 year service life.
- The line design can be customized to meet specific customer requirements. For example, a Zambello & Flender gearbox is available as an option.

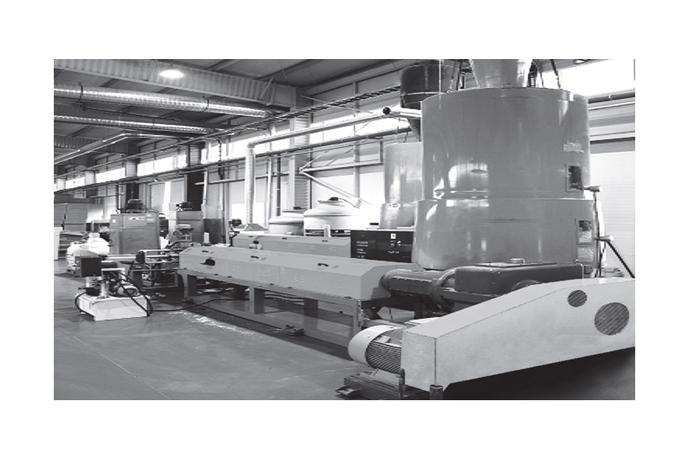

Product overview
Pelletizing lines by Myung-il Foamtec. Co. satisfy all customer needs based on state-of-the-art technologies.
Major strengths
Myung-il Foamtec’s pelletizing lines enjoy stable production and manufactures models of customers’ choice.
