product Image
MJIN
Model Name
MJIN
Series
Rotary Joint
Data
-
Manufacturer information
provider logo
MULTISHYDRO

Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more

Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Product Type
Machine
Brand
-
SKU
59039
Product Name
-
Model Name
MJIN
Size
-
Weight
-
Product Details

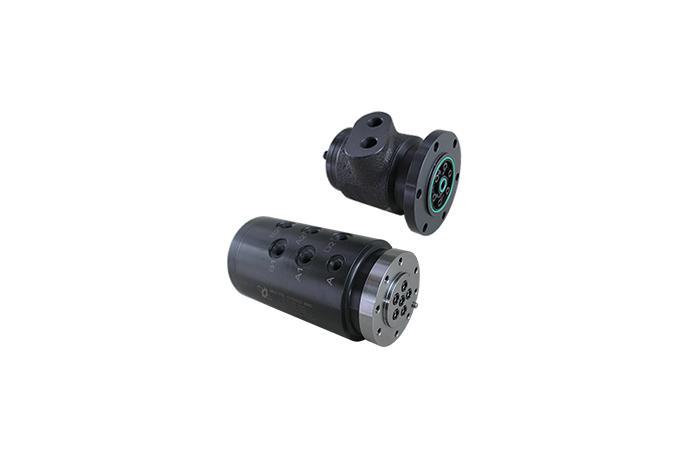

MULTIS HYDRO MJIN Series is specially designed for the equipment which needs high-speed rotation of the hydraulic or very low torque. There is no any damage from the high-speed rotation as it is composed of Non-Packing by labyrinth structure. This series guarantees stable longevity in terms of continuous use of machines as it isn’t affected by the pressure limit. Very small amount of the leaking from the inside of the rotary joints help lubricate the bearing and is collected through the drain port. Please contact our engineering department if you need a specific product.



Standard Size -
Fluid Hydraulic , Oil
Max. Pressure 400 kgf/cm²
Max. Temperature 120 °C
Max. Rotating Speed 2,000 RPM
