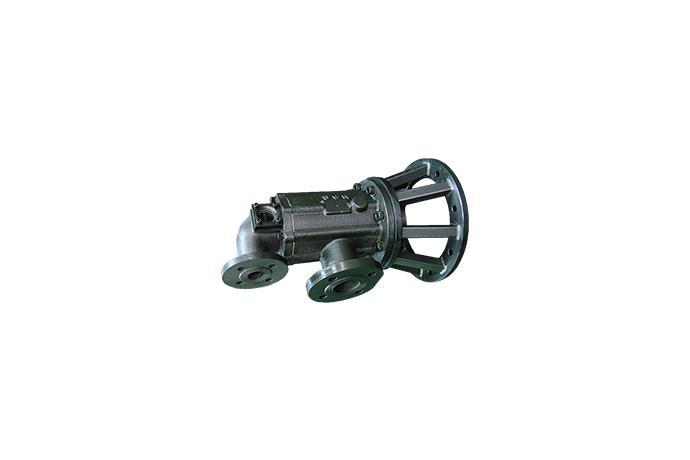

product Image
MJ-XM
Model Name
MJ-XM
Series
Rotary Joint
Data
Manufacturer information
provider logo
MULTISHYDRO

Mechanical seal manufacturer, Rotary joint, Swivel joint, Safe lock, Loading arm and more

Problem with product info?
Update request
Manufacturer
MULTISHYDRO
Product Type
Machine
Brand
-
SKU
59033
Product Name
-
Model Name
MJ-XM
Size
-
Weight
-
Product Details

MULTIS HYDRO MJ-XM Series is designed particularly for the higher-speed paper manufacturing and printing machines. The boundary between joints and mechanical seal is vague now for the higher-speed industrial equipment, whereas they were once thought to be in different fields in the past. Bearingless products have been developed considering that the damage on the bearings caused by the dead load shortens the longevity of rotary joints. By having installing the body part of rotary joints and siphon pipe together in the bearings of the dryer itself, it became possible to apply mechanical seal with mainly high-tech material to the seal face. MJ-XM series expands the longevity as many as five times that of the former rotary joint by this high-tech method.



Standard Size -
Fluid Steam
Max. Pressure 10 kgf/cm²
Max. Temperature Saturated Steam: 180 °C
Max. Rotating Speed 400 RPM
